Safety
- Active early warning and multiple electrical protection functions.
- Selected well-known brand 314Ah cell, cell cycle life≥ 11,000 cycles.
- Fire warning function, automatic fire extinguishing alarm function.
- High protection ingress level, adaptable to various extreme environments.
Economical and High Efficiency
- The system has high energy density with smaller footprint.
- Integrated design, the system comes with equipment-level EMS,which can monitor equipment status in real time.
- Outdoor cabinet design and flexible combination, suitable for a variety of application scenarios.
- Convenient transportation and installation, quickly shortening the construction period.
Product Features

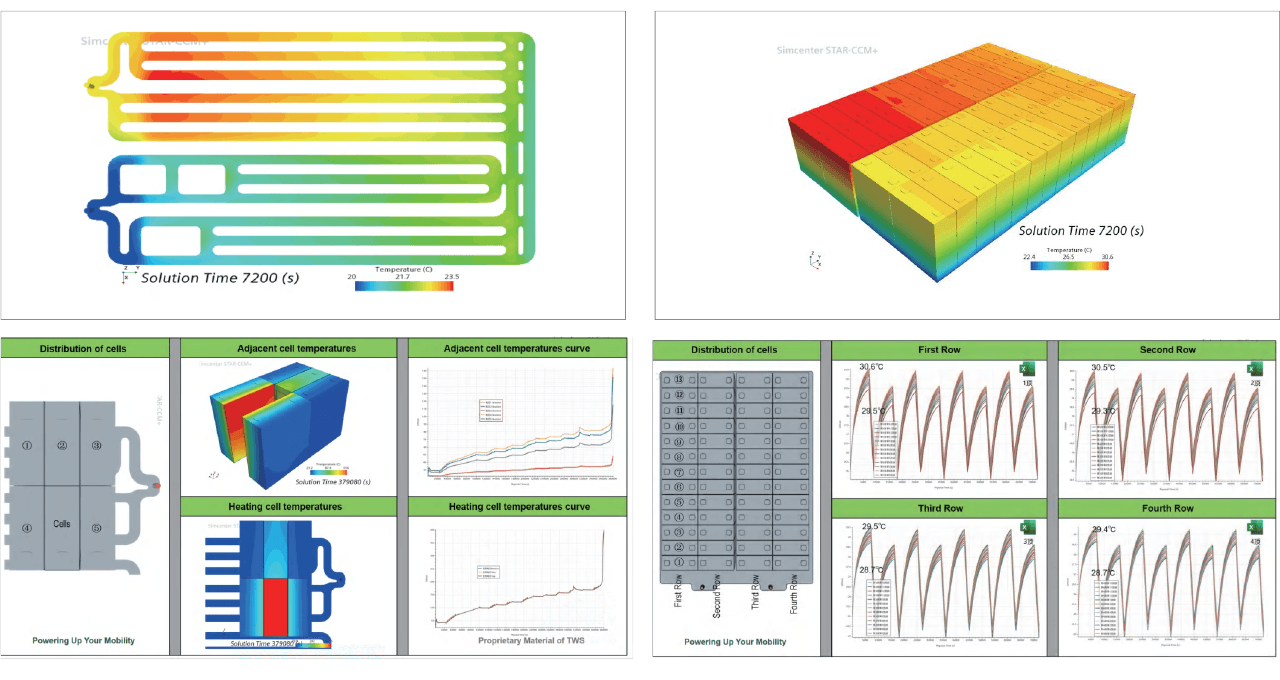

The liquid cooling pipelines are non-uniformly distributed, effectively reducing the temperature difference between the cells in the battery pack and ensuring that the temperature difference is ≤2°C.

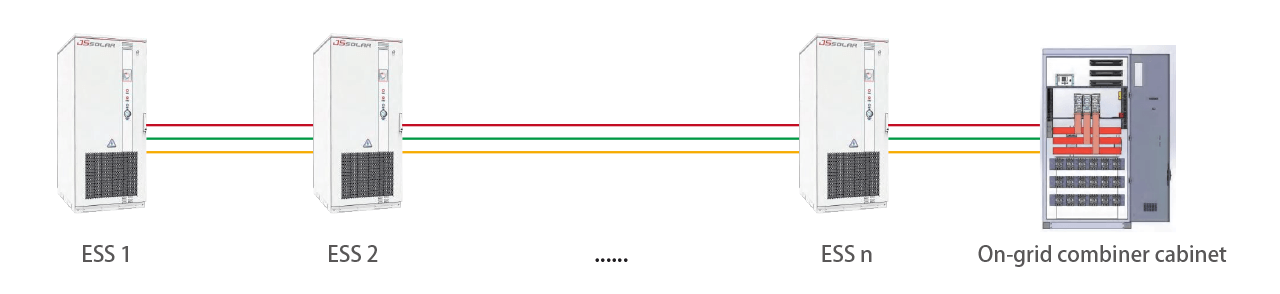

Diversified Configuration
Technical Parameters
| Parameter | LES-241L120 |
|---|---|
| Battery | |
| Battery Type | LFP |
| Rated Charge/Discharge Performance | 0.5C |
| Nominal Voltage [V] | 768 |
| Operating Voltage Range [V] | 672~876 |
| Cell Rated Capacity [Ah] | 314 |
| Nominal Capacity [kWh] | 241.15 |
| Composition | 1P240S |
| AC Output(On Grid) | |
| Rated Output Power [kW] | 120 |
| Max. Output Current [A] | 191 |
| Rated Output Voltage [V] | 3/N/PE, 400 |
| Rated Output Frequency [Hz] | 50/60 |
| Power Factor Adjustable Range | 0.9 (leading) ~ 0.9 (lagging) |
| DC Component | ＜0.5% In |
| THDi | <3% (@rated power) |
| AC Output(Off Grid) | |
| Rated Output Power [kW] | 120 |
| Max. Output Current [A] | 191 |
| Rated Output Voltage [V] | 3/N/PE, 230/400 |
| Rated Output Frequency [Hz] | 50/60 |
| Unbalanced Load Capacity | 100% |
| General Data | |
| Ingress Protection | IP54 |
| Battery Cooling Method | Liquid cooling system |
| Fire Fighting System | Aerosols, water fire protection system |
| Relative Humidity | 0~95%, non-condensing |
| Temp. Range [℃] | -20~+50 |
| Altitude [m] | 4000 (>2000 derating) |
| Communication | RS485 |
| Communication Protocol | Modbus |
| Weight kg | ≈2350 |
| Dimension (WDH) mm | 1000×1330×2350 |
| Delivery Method | Integral transportation |
| Certificates | EN62477-1:2012; EN IEC 61000; EN 50549-1/10; EN50549-10; TOR; G9 |
In case of changes in product dimensions and parameters, the latest information from our company shall prevail without prior notice.
Application Scenarios

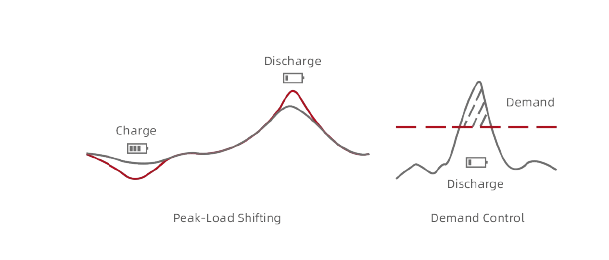

Electricity Saving
Peak-Load Shifting.
Factory, Office Block, Data Center, Charging Station

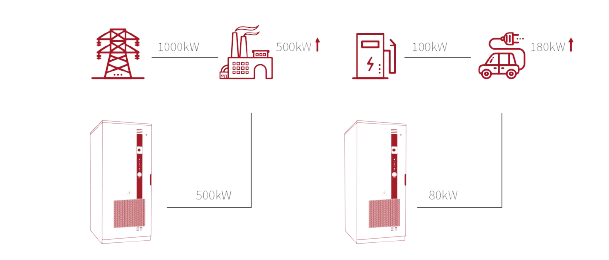

Power Expansion
Discharge when the distribution capacity cannot meet the load demand to achieve the effect of virtual capacity expansion.
Factory, Charging Station

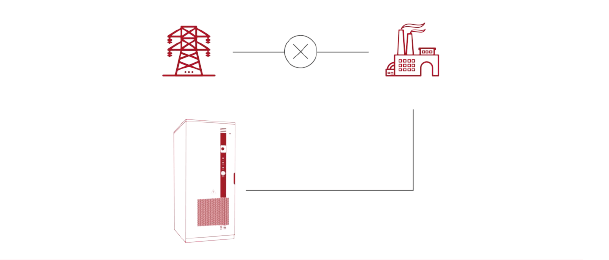

Backup Power Supply
Discharge to secure electricity supply in case of grid outage or limit on electricity supply.
Factory, Office Block, Shopping Mail, Hotel

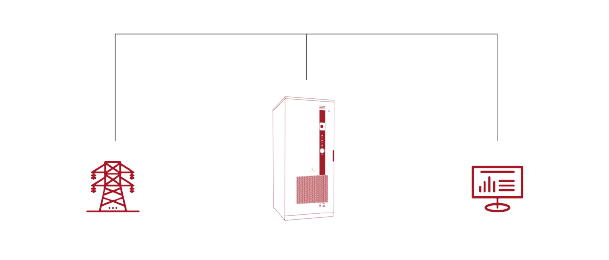

Demand Response
Enable power grid dispatching, Entitle dispatching subsidies.
Factory, Office Block, Shopping Mail
