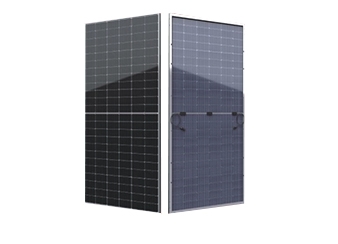

JS-Perc BIFACIAL SERIES 535-550W
PERC MODULE ADVANTAGE
- S=535/540/545/550
PERC MODULE ADVANTAGE
- Performance: Lower LCOE, reduced BOS cost, short payback time
- Double-sided power generation: The gain of double-sided power generation increases up to max·25% with the light on the back side and the significantly reduced looe
- Guarantee: Warranty comes from one of the most financially healthy PV providers
QUALITY SYSTEM
- ISO9001/ISO14001/ISO45001
free local delivery

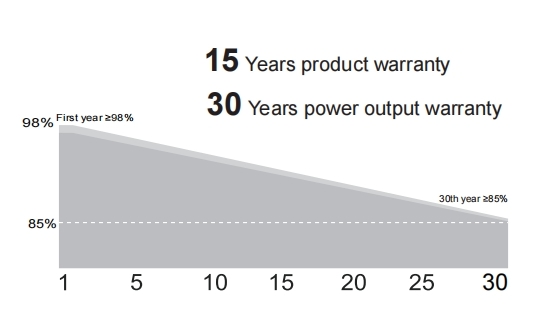

25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature
design attributes
| Parameter | Value |
|---|---|
| Cell Type | Ptype Mono-crystalline |
| Cell Arrangement | 144(6x24) |

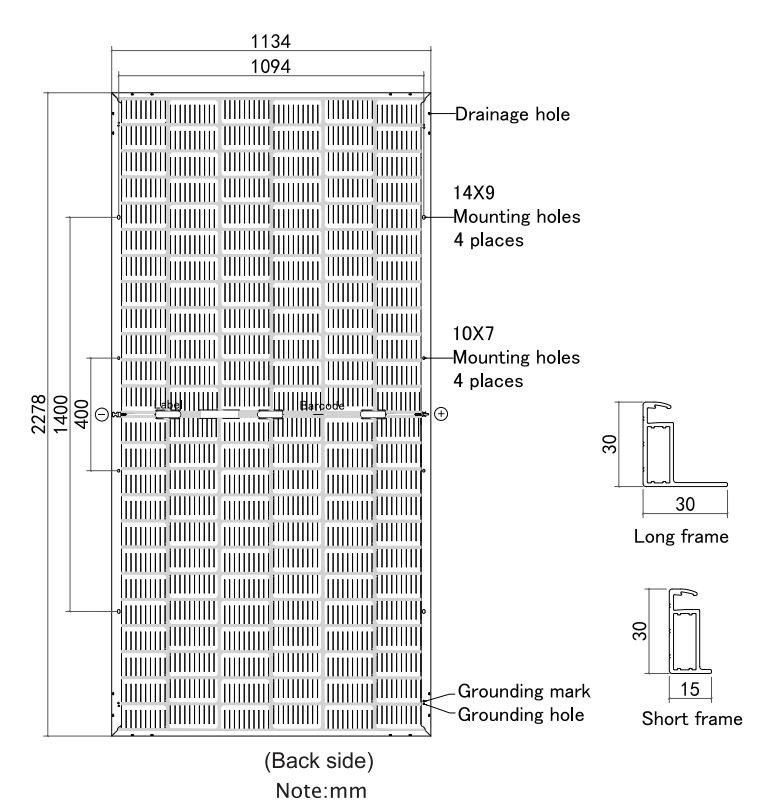

| Module Dimensions | 2278x1134x35mm |
| Weight | 32kg |
| Module Structure | Glass/Encapsulant/Glass |
| Glass Thickness | 2.0mm+2.0mm |
| PV Module Classification | Class II |
| Junction Box Rating | IP68 |
| Cables | 4mm²/1300mm or Customized Length |
| Connector Type | PV-ZH202B or MC4-EVO 2A (1500V) |

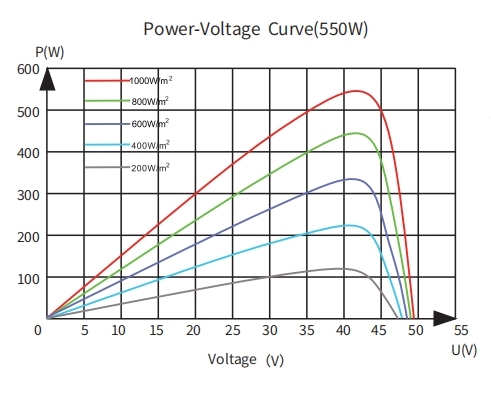

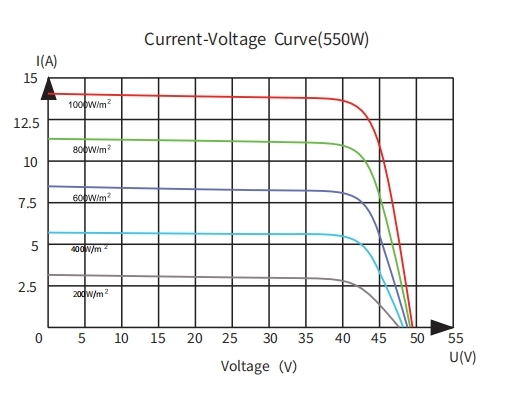

IV curve
Electrical performance
Electrical Specifications
| Module Type | JS535M144BDG | JS540M144BDG | JS545M144BDG | JS550M144BDG |
|---|---|---|---|---|
| Testing Condition | STCNOCT | STCNOCT | STCNOCT | STCNOCT |
| Maximum Power (Pmax/W) | 535 406 | 540 409 | 545 413 | 550 417 |
| Maximum Power Current (Imp/A) | 13.50 10.38 | 13.12 10.44 | 13.19 10.50 | 13.26 10.55 |
| Maximum Power Voltage (Vmp/V) | 41.00 39.07 | 41.16 39.22 | 41.32 39.37 | 41.48 39.52 |
| Short-circuit Current (Isc/A) | 13.90 11.26 | 13.97 11.31 | 14.04 11.37 | 14.11 11.43 |
| Open-circuit Voltage (Voc/V) | 49.44 46.81 | 49.59 46.95 | 49.74 47.09 | 49.89 47.23 |
| Module Efficiency STC (%) | 20.71% | 20.90% | 21.10% | 21.29% |
| Pmax Tolerance | 0/+3% | 0/+3% | 0/+3% | 0/+3% |
| Bifaciality | 70%±10% | 70%±10% | 70%±10% | 70%±10% |
| STC | AM1.5 1000W/㎡ 25℃ | AM1.5 1000W/㎡ 25℃ | AM1.5 1000W/㎡ 25℃ | AM1.5 1000W/㎡ 25℃ |
| NOCT | AM1.5 800W/㎡ 20℃ 1m/s | AM1.5 800W/㎡ 20℃ 1m/s | AM1.5 800W/㎡ 20℃ 1m/s | AM1.5 800W/㎡ 20℃ 1m/s |
| Measurement uncertainty | ±3% | ±3% | ±3% | ±3% |
STC: Radiation 1000 W/m² Module temperature 25°C AM=1.5
Power measurement tolerance: +/-3%
Temperature Characteristics
| Parameter | Value |
|---|---|
| Nominal Operating Cell Temperature(NOCT) | 42±3°C |
| Temperature Coefficient of Isc | +0.063%/°C |
| Temperature Coefficient of Voc | -0.269%/°C |
| Temperature Coefficient of Pmax | -0.335%/°C |
Packaging
| Parameter | Value |
|---|---|
| Pallet Dimensions | 2320×1140×1250mm |
| Container | 40'HQ |
| Pieces per Pallet | 36 |
| Pieces per Container | 720 |
Bifacial Gain
| Parameter | |||||
|---|---|---|---|---|---|
| 10% | Pmax(STC) | 589W | 594W | 600W | 605W |
| 20% | Pmax(STC) | 642W | 648W | 654W | 660W |
| 30% | Pmax(STC) | 696W | 702W | 709W | 715W |
Maximum Ratings
| Parameter | |||
|---|---|---|---|
| Operating Temperature | -40°C to+85°C | Maximum Series Fuse Rating | 30A |
| Maximum Load Capacity | Snow 5400Pa/Wind 2400Pa | Number of Diodes | 3 |
| Maximum System Voltage | 1500V DC(IEC) | Fire Rating Class | Class C |
JS Solar reserves the right of final interpretation and revision of this data sheet.
