JS-PERC SERIES 540-555W
- Reduce mismatch for more power
- Reduces power loss by minimizing shadowing effects
- Competitive low light performance
- 3 times EL test to ensure the best quality
- Ideal for utility and commercial scale projects with lower BoS and higher ROI
- Sand , acid, salt and hail test 2400 Pa winter load and 5400 Pa snow load resistance to PID
- QUALITY SYSTEM： ISO9001/ISO14001/ISO45001
free local delivery

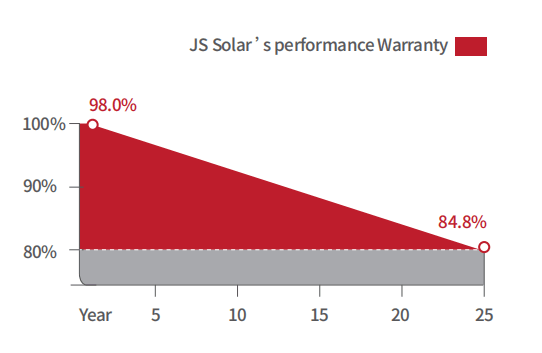

25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature

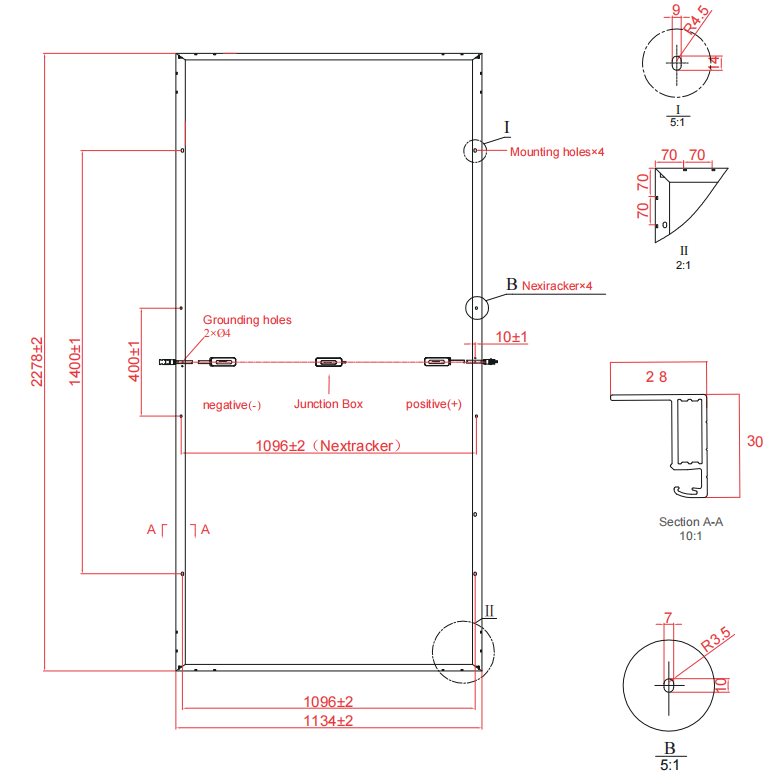

design attributes
| Parameter | Value |
|---|---|
| Solar battery | single crystal |

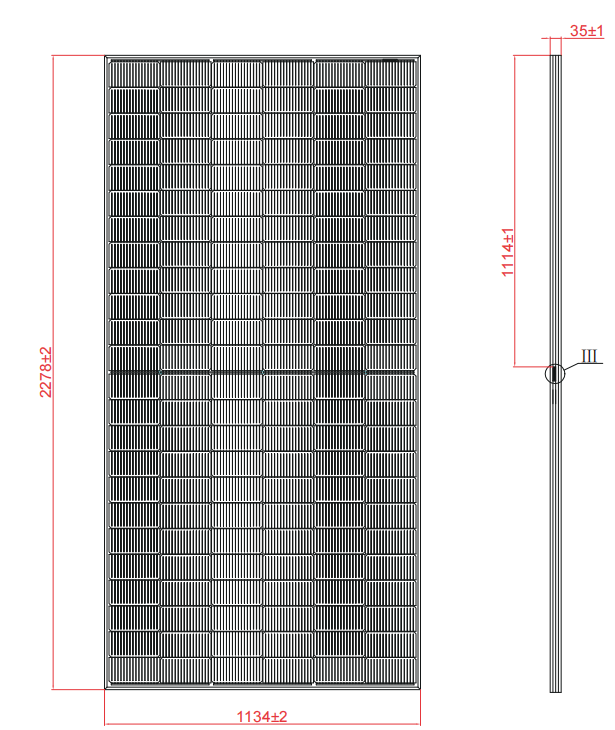

| external dimensions | 2278 x 1134 x 35mm |
| weight | 27.0kg |
| Solar battery | Perc mono (144 pcs) |
| front glass | 3.2mm AR coated tempered glass, low iron |
| frame | Anodized aluminum alloy |
| Junction Box | IP68, 3 diodes |
| output cable | 4.0mm², 250mm(+)/350mm(-) or customized length |
| mechanical load | Front side 5400Pa/ rear side 2400Pa |

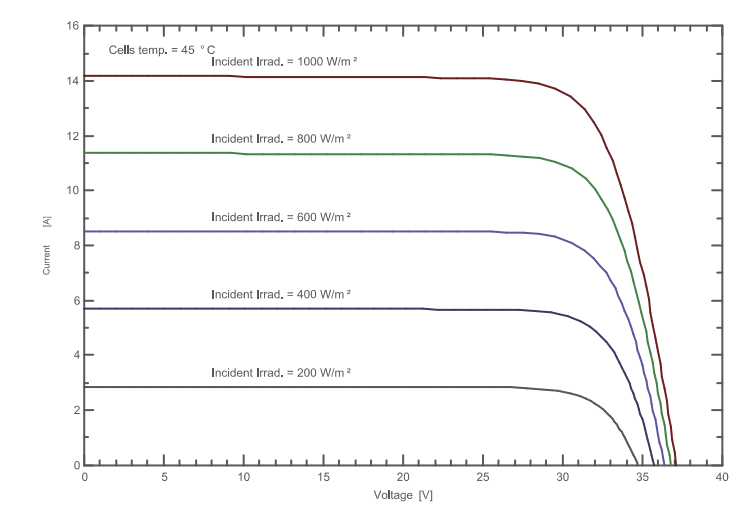

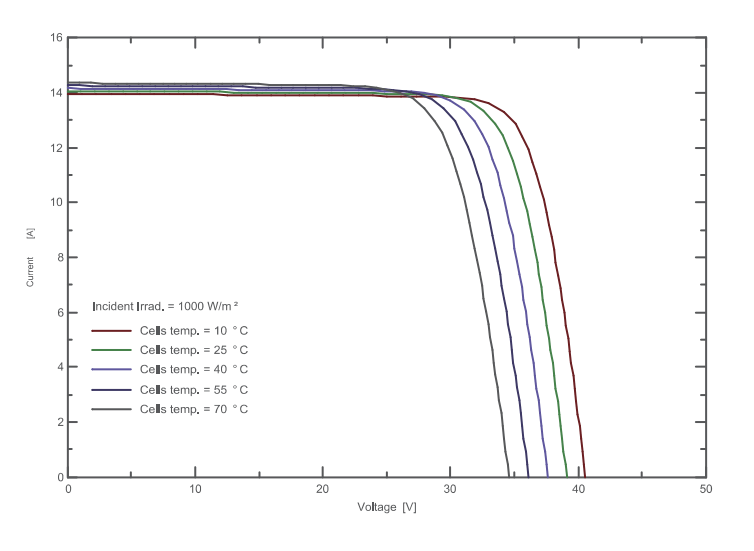

IV curve
Electrical performance
electrical properties
| module type | JS540M144 | JS545M144 | JS550M144 | JS555M144 |
|---|---|---|---|---|
| STCNOCT | STCNOCT | STCNOCT | STCNOCT | |
| Maximum power at STC (Pmp) | 540 406 | 540 409 | 550 414 | 555 418 |
| Open circuit voltage (Voc) | 49.50 46.18 | 49.60 46.32 | 49.70 46.40 | 49.80 46.50 |
| Short circuit current (Isc) | 13.81 11.16 | 13.90 11.23 | 14.00 11.32 | 14.10 11.41 |
| Maximum supply voltage (Vmp) | 41.55 38.39 | 41.80 38.41 | 42.05 38.58 | 42.31 38.68 |
| Maximum power current (Imp) | 13.00 10.59 | 13.04 10.65 | 13.08 10.73 | 13.12 10.81 |
| Module efficiency under STC (%) | 20.90 | 21.10 | 21.29 | 21.48 |
| power tolerance | (0, +4.99W) | (0, +4.99W) | (0, +4.99W) | (0, +4.99W) |
| system voltage | 1500V DC | 1500V DC | 1500V DC | 1500V DC |
| Maximum Series Fuse Rating | 25A | 25A | 25A | 25A |
STC: Radiation 1000 W/m² Module temperature 25°C AM=1.5
Power measurement tolerance: +/-3%
Electrical performance parameters
temperature characteristics
| Parameter | Value |
|---|---|
| Pmax temperature coefficient | -0.34 %/°C |
| Voc temperature coefficient | -0.26 %/°C |
| Isc temperature coefficient | +0.05 %/°C |
| Operating temperature | -40~+85°C |
| Nominal Operating Cell Temperature (NOCT) | 45±2°C |
packaging configuration
| Parameter | ||
|---|---|---|
| 2278 x 1134 x 35mm | 2278 x 1134 x 35mm | |
| container | 20'GP | 40'HQ |
| Pieces per pallet | 31 | 31 |
| pallet per container | 6 | 20 |
| Pieces per container | 124 | 620 |
JS Solar reserves the right of final interpretation and revision of this data sheet.
