JS-N-TOPCon SERIES 420-435W
  • Reduce heat spot effect
  • Multi-main gate technology
  • Multi-main gate technology
  • Higher bifacially
  • High module conversion Efficiency
  • 25-year power warranty
  • Quality system: ISO9001/ISO14001/ISO45001
PDF download
free local delivery

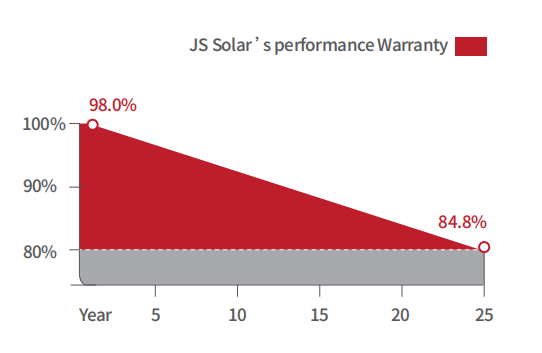

25-year power supply warranty
Lifetime Customer Support

Certifications and Standards

Certifications and StandardsCertifications and Standards

feature

FeatureFeature

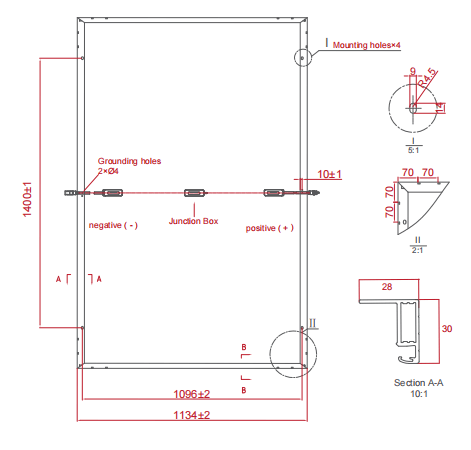

design attributes

ParameterValue
Solar batterymonocrystalline

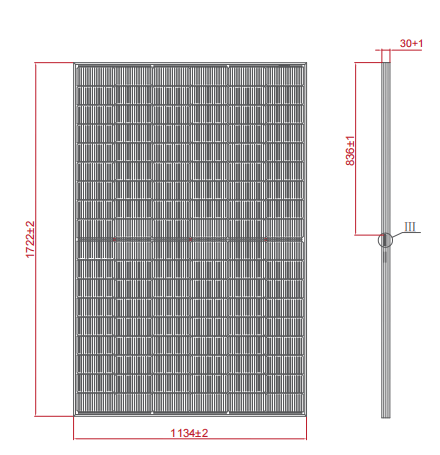

External Dimensions1722 x 1134 x 30mm
Weight19.0kg
Solar CellsN-TOPCon 182 x 91mm (108 pcs)
Front Glass3.2mm AR coating tempered glass, low iron
FrameAnodized aluminum alloy
Junction BoxIP68, 3 diodes
Output Cables4.0mm², 250mm(+)/350mm(-) or Customized Length
Mechanical LoadFront side 5400Pa/ Rear side 2400Pa

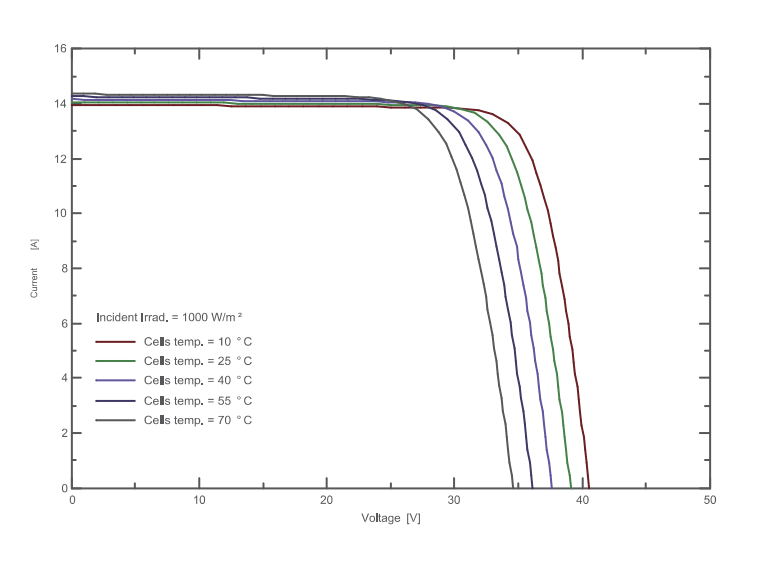

IV curve

IV CurveIV Curve

Electrical performance

Electrical Characteristics

Module TypeJS420N108FBJS425N108FBJS430N108FBJS435N108FB
STC NOCTSTC NOCTSTC NOCTSTC NOCT
Maximum Power at STC (Pmp)420 316425 322430 324435 328
Open Circuit Voltage (Voc)38.50 36.5838.70 36.7738.90 36.9639.10 37.15
Short Circuit Current (Isc)13.83 11.0613.91 11.1313.99 11.1914.07 11.26
Maximum Power Voltage (Vmp)31.90 29.9932.10 30.2132.30 30.4132.50 30.62
Maximum Power Current (Imp)13.17 10.5413.24 10.5913.32 10.6613.39 10.71
Module Efficiency at STC(%)21.5121.7622.0222.28
Power Tolerance(0, +4.99W)(0, +4.99W)(0, +4.99W)(0, +4.99W)
Maximum System Voltage1500V DC1500V DC1500V DC1500V DC
Maximum Series Fuse Rating25A25A25A25A

STC: lrradiance 1000 W/m² module temperature 25°C AM=1.5

Power measurement tolerance: +/-3%

Electrical performance parameters

Temperature Characteristics

ParameterValue
Pmax Temperature Coefficient-0.30 %/°C
Voc Temperature Coefficient-0.25 %/°C
Isc Temperature Coefficient+0.046 %/°C
Operating Temperature-40~+85°C
Nominal Operating Cell Temperature (NOCT)45±2°C

Packing Configuration

Parameter
1722 x 1134 x 30mm1722 x 1134 x 30mm
Container20'GP40'HQ
Pieces per Pallet3636
Pallets per Container626
Pieces per Container216936

JS Solar reserves the right of final interpretation and revision of this data sheet.
