JS-N-TOPCon SERIES565-580W
- Reduce heat spot effect
- Multi-main gate technology
- Excellent low-light performance
- Higher bifacially
- High module conversion Efficiency

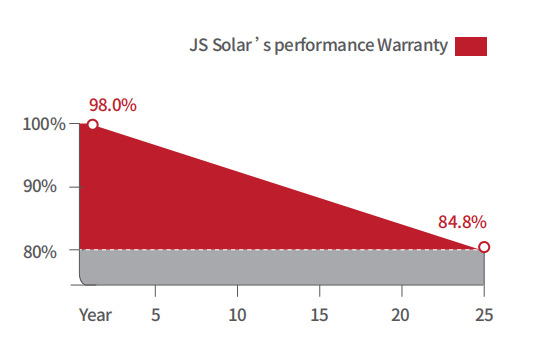

- 25-year power warranty
- Quality system: ISO9001/ISO14001/ISO45001
free local delivery
25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature

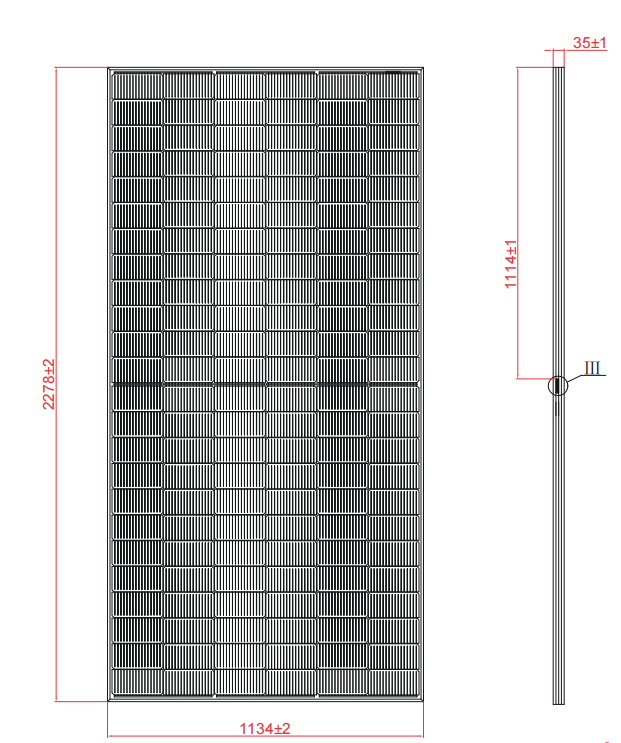

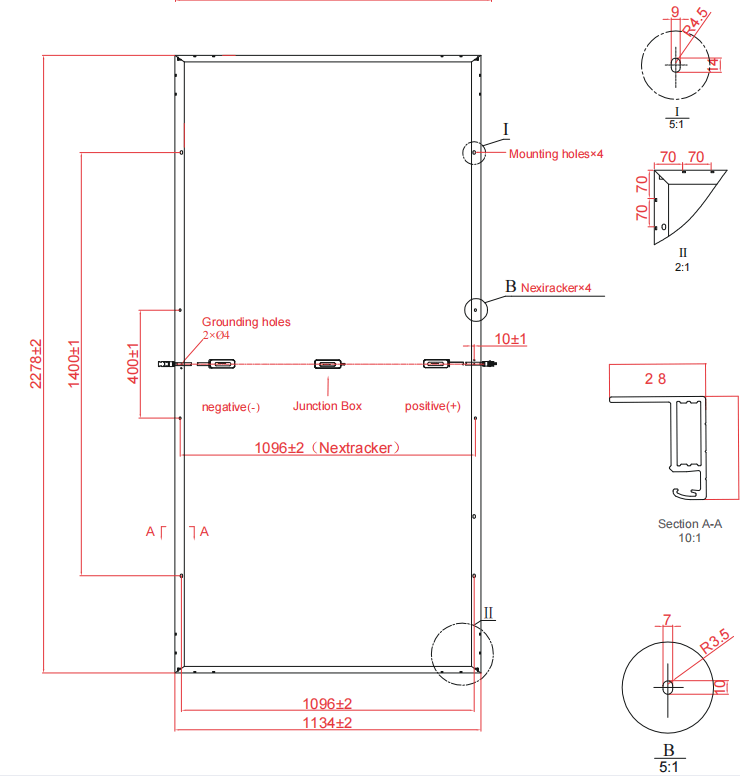

design attributes
| Parameter | Value |
|---|---|
| Solar battery | monocrystalline |
| External Dimensions | 2278 x 1134 x 35mm |
| Weight | 26.5kg |
| Solar Cells | N-TOPCon 182 x 91mm (144 pcs) |
| Front Glass | 3.2mm AR coating tempered glass, low iron |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68, 3 diodes |
| Output Cables | 4.0mm², 250mm(+)/350mm(-) or customized length |
| Mechanical Load | Front side 5400Pa/ Rear side 2400Pa |

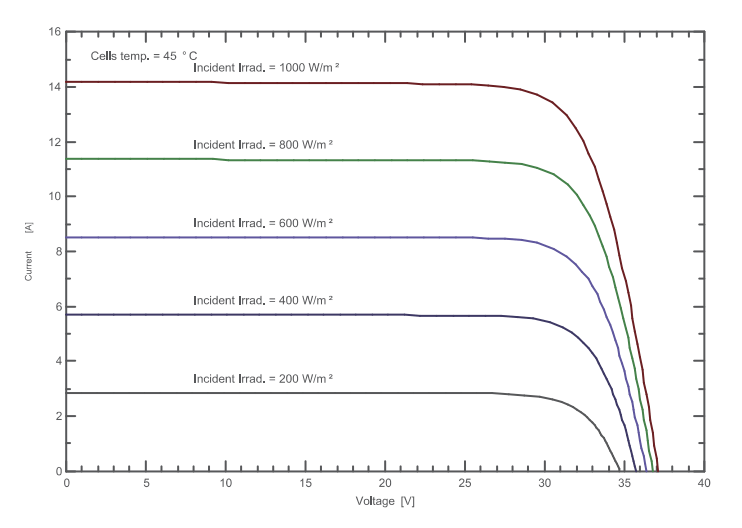

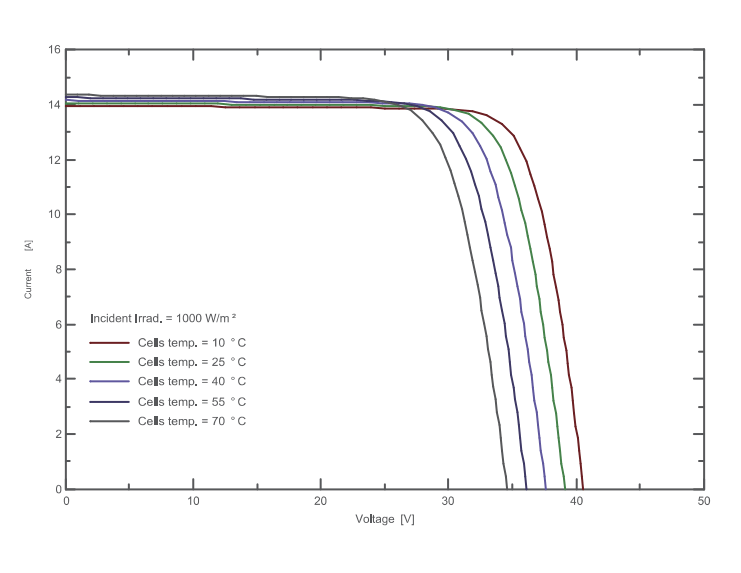

IV curve
Electrical performance
Electrical Characteristics
| Module Type | JS565N144 | JS570N144 | JS575N144 | JS580N144 |
|---|---|---|---|---|
| STC NOCT | STC NOCT | STC NOCT | STC NOCT | |
| Maximum Power at STC (Pmp) | 565 425 | 570 429 | 575 433 | 580 437 |
| Open Circuit Voltage (Voc) | 51.50 48.93 | 51.70 49.12 | 51.90 49.31 | 52.10 49.50 |
| Short Circuit Current (Isc) | 13.83 11.11 | 13.95 11.16 | 14.01 11.21 | 14.07 11.26 |
| Maximum Power Voltage (Vmp) | 42.80 40.22 | 43.00 40.44 | 43.20 40.63 | 43.40 40.86 |
| Maximum Power Current (Imp) | 13.21 10.57 | 13.26 10.61 | 13.32 10.66 | 13.37 10.70 |
| Module Efficiency at STC(%) | 21.87 | 22.07 | 22.26 | 22.45 |
| Power Tolerance | (0, +4.99W) | (0, +4.99W) | (0, +4.99W) | (0, +4.99W) |
| Maximum System Voltage | 1500V DC | 1500V DC | 1500V DC | 1500V DC |
| Maximum Series Fuse Rating | 25A | 25A | 25A | 25A |
STC: lrradiance 1000 W/m² module temperature 25°C AM=1.5
Power measurement tolerance: +/-3%
Electrical performance parameters
Temperature Characteristics
| Parameter | Value |
|---|---|
| Pmax Temperature Coefficient | -0.30 %/°C |
| Voc Temperature Coefficient | -0.25 %/°C |
| Isc Temperature Coefficient | +0.046 %/°C |
| Operating Temperature | -40~+85°C |
| Nominal Operating Cell Temperature (NOCT) | 45±2°C |
Packing Configuration
| Parameter | ||
|---|---|---|
| 2278 x 1134 x 35mm | 2278 x 1134 x 35mm | |
| Container | 20'GP | 40'HQ |
| Pieces per Pallet | 31 | 31 |
| Pallets per Container | 6 | 26 |
| Pieces per Container | 124 | 620 |
JS Solar reserves the right of final interpretation and revision of this data sheet.
