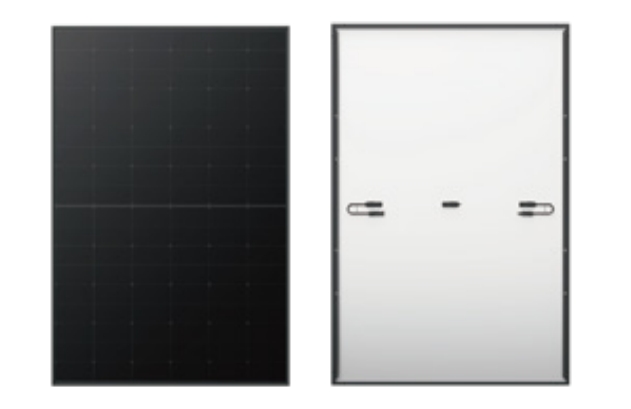

JS-108HBC 410~430M
Product advantages
- Suitable for distribution market
- Pure black for extreme elegance
- Better energy generation performance
- High-quality module guarantees long-term reliability
Product features
- Maximum module efficiency: 22.0%
- Power tolerance: 0~3%
- First year power degradation:<1.5%
- Year 2-25 power degradation: 0.40%
Product warranty
- 15-year Warranty for Materials and Processing

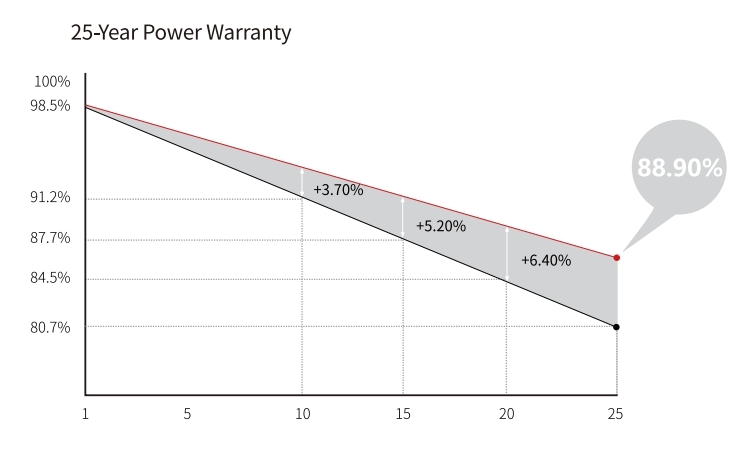

- 25-year Warranty for ExtraLinear Power Output
Complete system and product certification
- IEC 61215, IEC 61730, UL 61730
- ISO9001:2015: ISO quality management system
- ISO14001:2015: ISO Environmental Management System
- ISO45001:2018:0 Occupational Health and Safety
- IEC62941: Guidelines for module design qualification and type approval
free local delivery
25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature
design attributes
| Parameter | Value |
|---|---|
| Solar battery | monocrystalline |
| Cell Orientation | 108(6X18) |

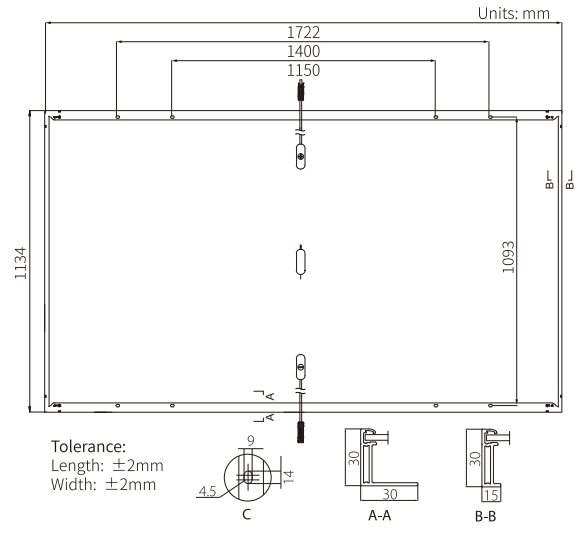

| Dimension | 1722X1134X30mm |
| Weight | 20.8kg |
| Frame | Anodized aluminum alloy frame |
| Glass | Single glass, 3.2mm coated tempered glass |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm2,±1200mm Length can be customized |
| Package | 36 pieces per pallet/216 pieces per 20' GP/936 pieces per 40' HC |
Electrical performance
Electrical Characteristics
- STC: AM1.5 1000W/m² 25°C
- NOCT: AM1.5 800W/m² 20°C 1m/s
- Test uncertainty for Pmax: ±3%
| Module Type | JS410M108HBC | JS415M108HBC | JS420M108HBC | JS425M108HBC | JS430M108HBC |
|---|---|---|---|---|---|
| Testing Condition | STC / NOCT | STC / NOCT | STC / NOCT | STC / NOCT | STC / NOCT |
| Maximum Power (Pmax/W) | 410 / 306 | 415 / 310 | 420 / 314 | 425 / 318 | 430 / 321 |
| Open Circuit Voltage (Voc/V) | 38.63 / 36.27 | 38.83 / 36.46 | 39.03 / 36.65 | 39.23 / 36.83 | 39.43 / 37.02 |
| Short Circuit Current (Isc/A) | 13.70 / 11.07 | 13.78 / 11.13 | 13.85 / 11.19 | 13.93 / 11.25 | 14.00 / 11.31 |
| Voltage at Maximum Power (Vmp/V) | 32.36 / 29.53 | 32.56 / 29.71 | 32.76 / 29.89 | 32.96 / 30.08 | 33.16 / 30.26 |
| Current at Maximum Power (Imp/A) | 12.67 / 10.37 | 12.75 / 10.44 | 12.83 / 10.50 | 12.90 / 10.56 | 12.97 / 10.62 |
| Module Efficiency (%) | 21.0% | 21.3% | 21.5% | 21.8% | 22.0% |
Electrical performance parameters
Operating Parameters
| Parameter | Value |
|---|---|
| Operational Temperature | -40°C~+85°C |
| Power Output Tolerance | 0~3% |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45±2°C |
| Protection Class | Class II |
| Fire Rating | UL Type 1 or 2 / IEC Class C |
Mechanical Loading
| Parameter | Value |
|---|---|
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm Hailstone at the speed of 23m/s |
Temperature Ratings (STC)
| Parameter | Value |
|---|---|
| Temperature Coefficient of Isc | +0.050%/°C |
| Temperature Coefficient of Voc | -0.230%/°C |
| Temperature Coefficient of Pmax | -0.290%/°C |
JS Solar reserves the right of final interpretation and revision of this data sheet.
