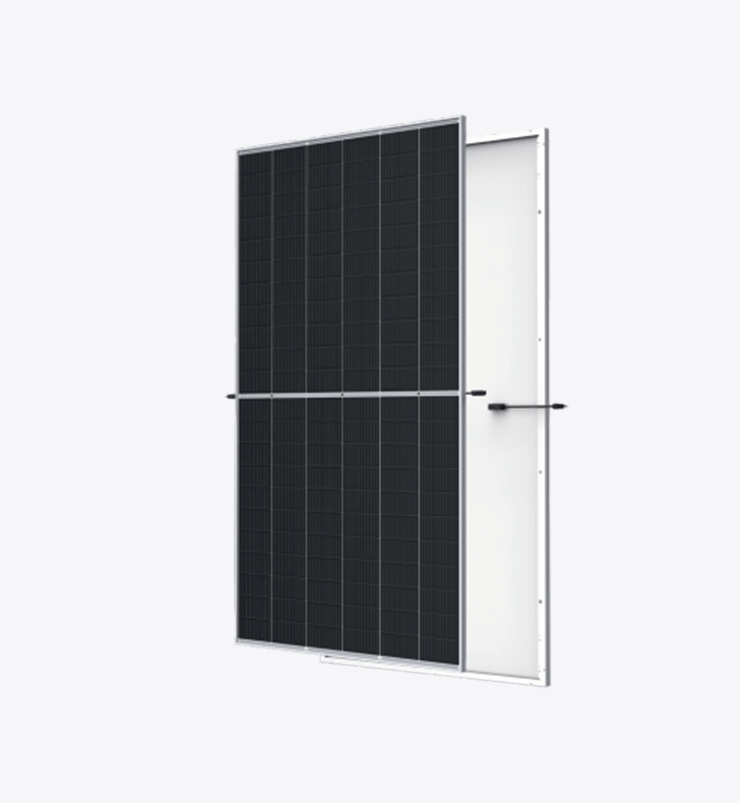

JS210MHC132-670W
- High conversion efficiency
- Flexible installation
- Good PID resistance

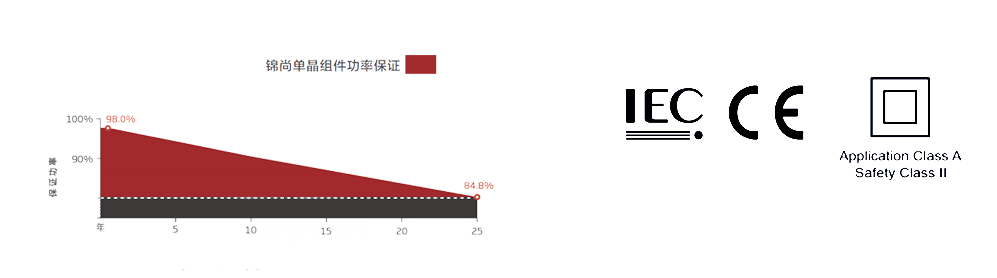

- 25-year warranty to reduce decay rate
free local delivery
25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature
design attributes
| Parameter | Value |
|---|---|
| Solar battery | single crystal |
| cell localization | 132 cells |

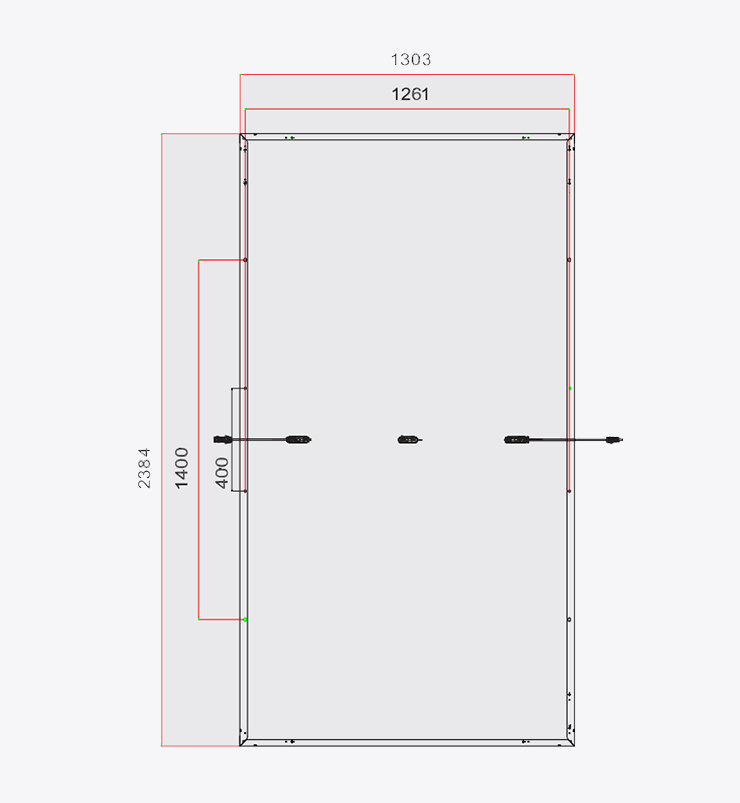

| module size | 2384x1303x35mm |
| weight | 34kg |
| Glass | 3.2 mm, high transmission, AR-coated heat-strengthened glass |
| Sealant material | EVA |
| relatively | White |
| frame | 35mm anodized aluminum |
| J-Box | ip68 rated |
| cable | Photovoltaic technology cable 4.0mm2, 250mm(+)/350(-) or custom length |
IV curve
Electrical performance
Electrical Performance@STC
| Maximum power Pmax Wp | 650 | 655 | 660 | 665 | 670 |
|---|---|---|---|---|---|
| Power Tolerance - pmax (W) | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 |
| Maximum supply voltage Vmpp(V) | 41 | 37.61 | 37.81 | 38.01 | 38.21 |
| maximum. Supply current lmpp(A) | 17.38 | 17.42 | 17.46 | 17.50 | 17.54 |
| Open circuit voltage Voc(V) | 45.3 | 45.5 | 45.9 | 45.9 | 46.1 |
| Short circuit current lsc(A) | 18.44 | 18.48 | 18.57 | 18.57 | 18.62 |
| Module efficiency (%) | 20.9% | 21.1% | 21.2% | 21.4% | 21.6% |
Electrical performance parameters
Electrical Performance@NOCT
| Maximum power Pmax Wp | 491 | 495 | 499 | 503 | 507 |
|---|---|---|---|---|---|
| Maximum supply voltage Vmpp(V) | 34.86 | 35.05 | 35.24 | 35.42 | 35.61 |
| maximum. Supply current lmpp(A) | 14.09 | 14.13 | 14.16 | 14.19 | 14.23 |
| Open circuit voltage Voc(V) | 42.3 | 42.48 | 42.67 | 42.86 | 43.04 |
| Short circuit current lsc(A) | 14.9 | 14.93 | 14.97 | 15.01 | 15.06 |
Nominal test conditions for IV parameters are standard test conditions (irradiance 10.0 Wm7, AM 15, cell temperature 25'°C) All measurements are guaranteed at laminate leads. NOCT measures wind speed at 800 W/m², 20C ambient temperature, and 1 m/s. Specifications are subject to change without notice.
JS Solar reserves the right of final interpretation and revision of this data sheet.
