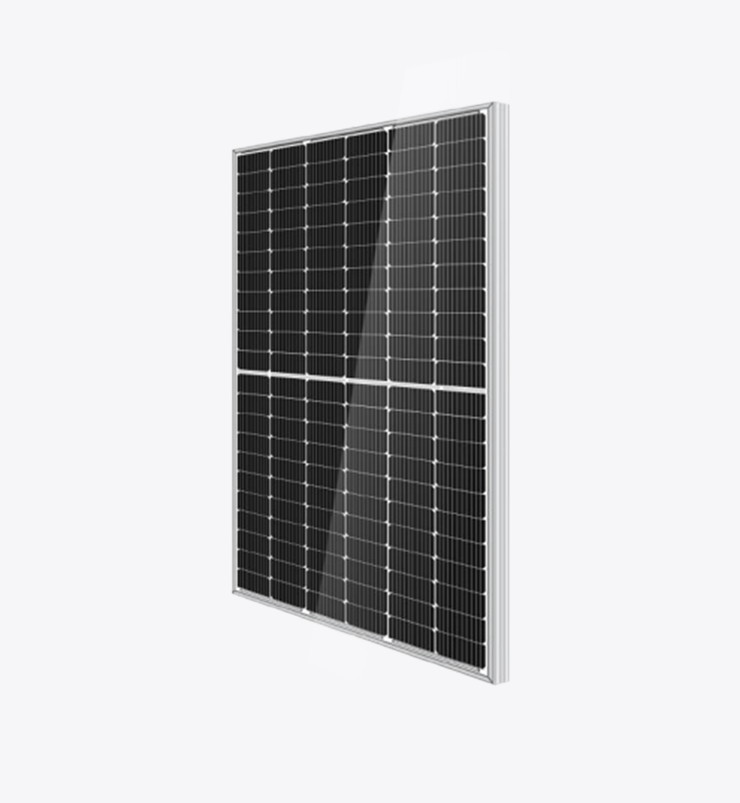

JS182MHC132-510W
- High conversion efficiency
- Flexible installation
- Good PID resistance

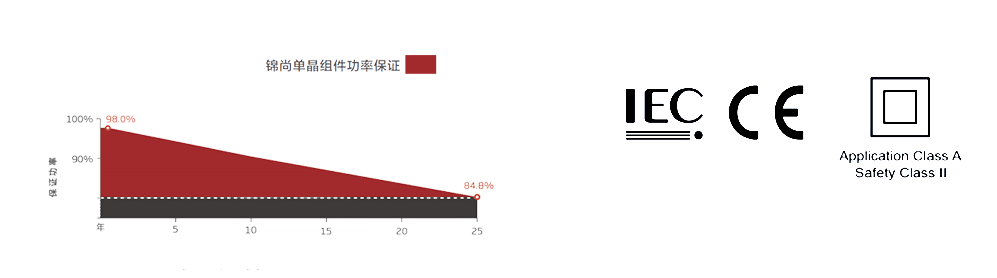

- 25-year warranty to reduce decay rate
free local delivery
25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature

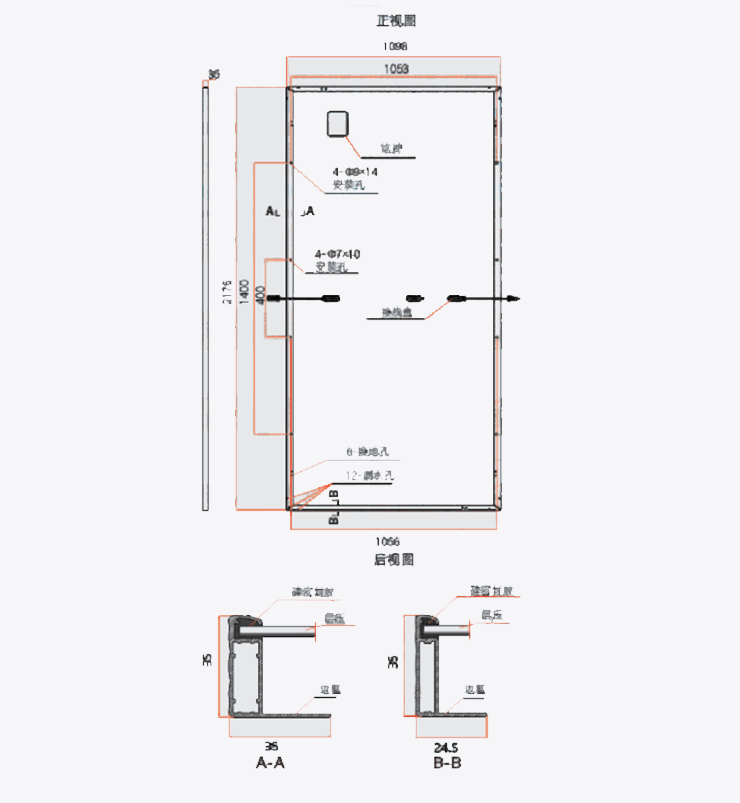

design attributes
| Parameter | Value |
|---|---|
| dimension | 2187×1102×35mm |
| weighing | 26.5 kg |
| Glass | 3.2 mm, high transmission, AR-coated heat-strengthened glass |
| Sealant material | EVA |
| relatively | White |
| frame | 35mm anodized aluminum |
| cable | Photovoltaic technology cable 4.0mm2, longitudinal: N 280mm/P 280mm length can be customized |

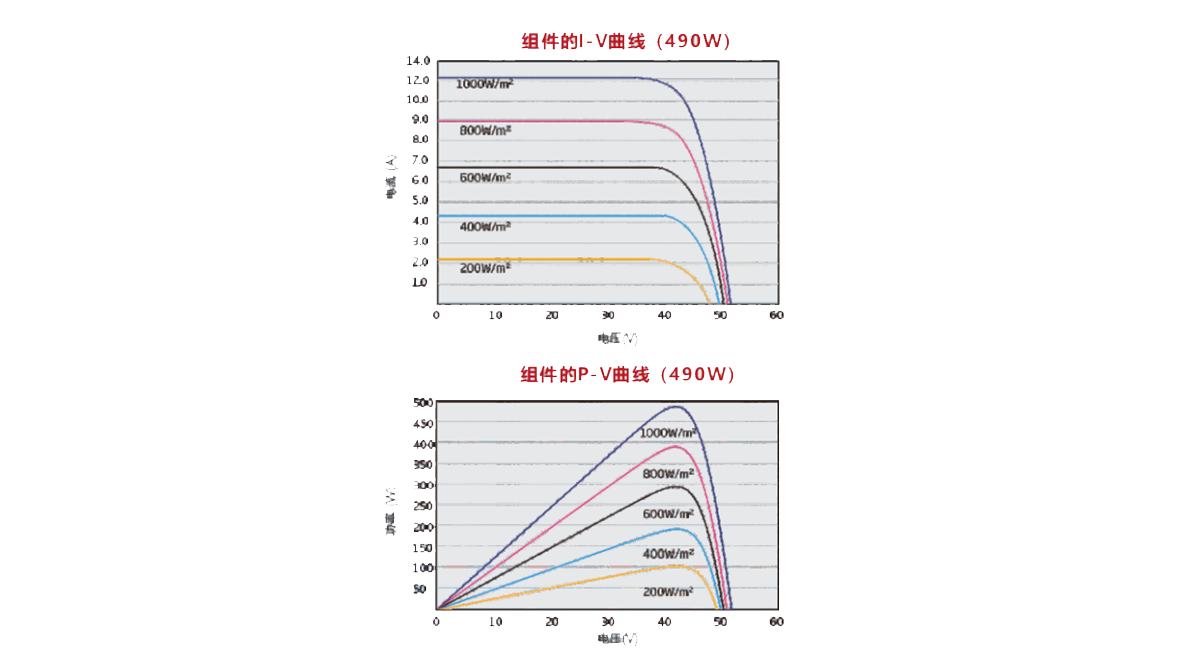

IV curve
Electrical performance
Electrical performance @ STC
| Maximum power Pmax Wp | 485 | 490 | 495 | 500 | 505 | 510 |
|---|---|---|---|---|---|---|
| Power tolerance - pmax (W) | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 |
| Maximum supply voltage Vmpp(V) | 42.2 | 42.4 | 42.6 | 42.8 | 43.0 | 43.2 |
| maximum. Supply current lmpp(A) | 11.49 | 11.56 | 11.63 | 11.69 | 11.75 | 11.81 |
| Open circuit voltage Voc(V) | 51.1 | 51.3 | 51.5 | 51.7 | 51.9 | 52.1 |
| Short circuit current lsc(A) | 12.07 | 12.14 | 12.21 | 12.28 | 12.35 | 12.42 |
| Module efficiency (%) | 20.1% | 20.3% | 20.5% | 20.7% | 21.0% | 21.2% |
Electrical performance parameters
Electrical Performance@NOCT
| Maximum power Pmax Wp | 365 | 369 | 373 | 377 | 381 | 385 |
|---|---|---|---|---|---|---|
| Maximum supply voltage Vmpp(V) | 39.9 | 40.0 | 40.2 | 40.4 | 40.6 | 40.5 |
| maximum. Supply current lmpp(A) | 9.17 | 9.22 | 9.28 | 9.33 | 9.38 | 9.50 |
| Open circuit voltage Voc(V) | 48.1 | 48.2 | 48.4 | 48.6 | 48.8 | 49.0 |
| Short circuit current lsc(A) | 9.73 | 9.78 | 9.84 | 9.90 | 9.95 | 10.01 |
Nominal test conditions for IV parameters are standard test conditions (irradiance 10.0 Wm7, AM 15, cell temperature 25'°C) All measurements are guaranteed at laminate leads. NOCT measures wind speed at 800 W/m², 20C ambient temperature, and 1 m/s. Specifications are subject to change without notice.
JS Solar reserves the right of final interpretation and revision of this data sheet.
