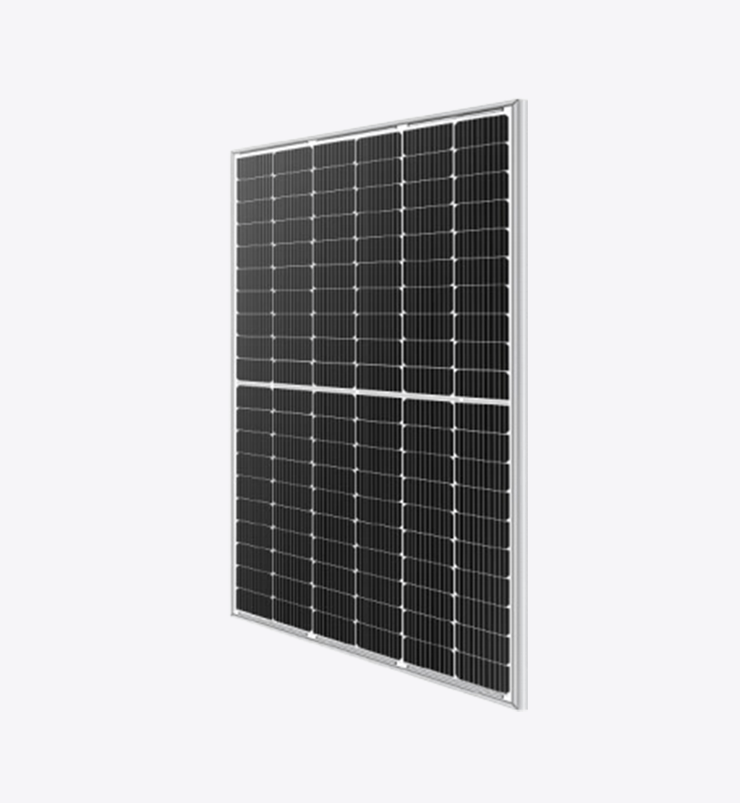

JS182MHC120-465W
- High conversion efficiency
- Flexible installation
- Good PID resistance

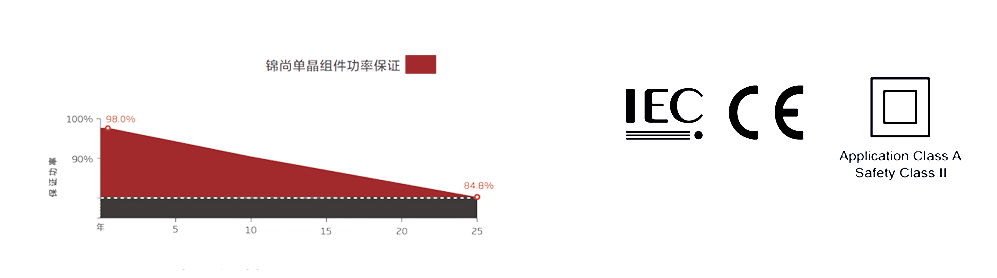

- 25-year warranty to reduce decay rate
free local delivery
25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature

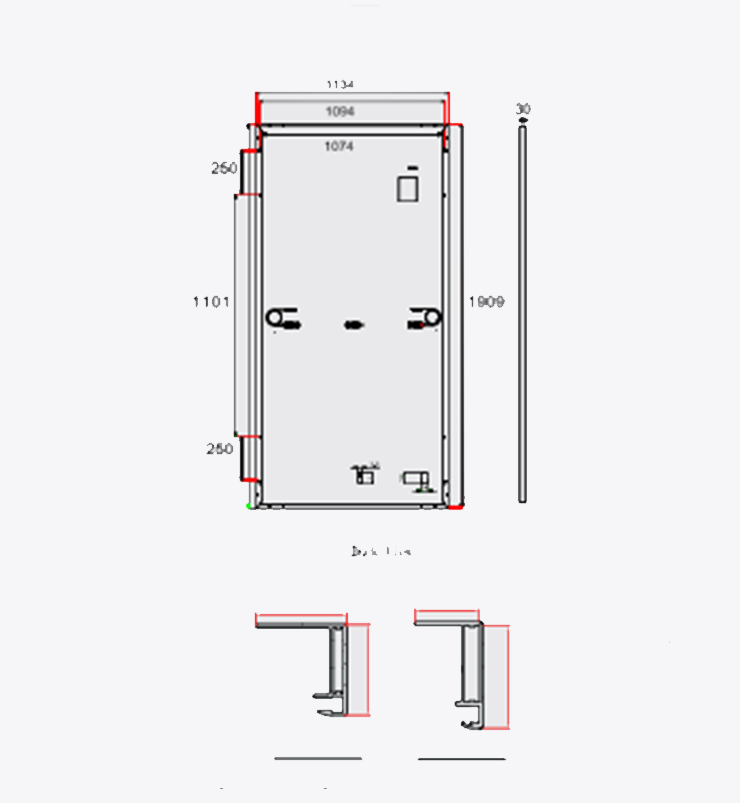

design attributes
| Parameter | Value |
|---|---|
| dimension | 1909x1134x30mm |
| weighing | 23kg |
| Glass | 3.2 mm, high transmission, AR-coated heat-strengthened glass |
| Sealant material | EVA |
| outer material | White |
| frame | 35mm anodized aluminum |
| cable | Photovoltaic technology cable 4.0mm2, portrait: N 300mm/P 300mm length can be customized |

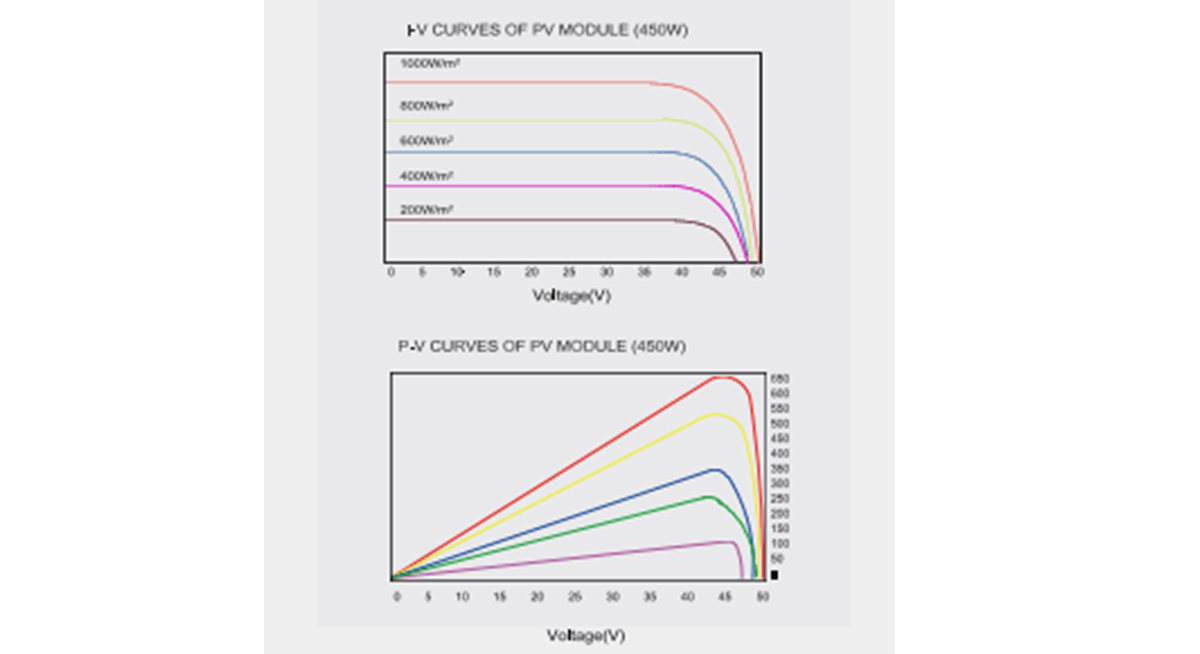

IV curve
Electrical performance
Electrical performance @ STC
| Maximum power Pmax Wp | 450 | 455 | 460 | 465 |
|---|---|---|---|---|
| Power tolerance - pmax (W) | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 |
| Maximum power supply voltage Vmpp(V) | 34.70 | 34.9 | 35.2 | 35.4 |
| Max. supply current lmpp(A) | 12.96 | 13 .02 | 13 .08 | 13 . 14 |
| Open circuit voltage Voc(V) | 41.4 | 41.6 | 41.8 | 42 .0 |
| Short circuit current lsc(A) | 13.68 | 13.73 | 13.78 | 13.83 |
| Module efficiency (%) | 20.79% | 21.02% | 21.25% | 21.48% |
Electrical performance parameters
Electrical Performance@NOCT
| Maximum power Pmax Wp | 331 | 335 | 339 | 343 |
|---|---|---|---|---|
| Maximum supply voltage Vmpp(V) | 32.34 | 32 . 54 | 32.74 | 32.94 |
| maximum. Supply current lmpp(A) | 10 .24 | 10.30 | 10.35 | 10.40 |
| Open circuit voltage Voc(V) | 36 . 68 | 38.88 | 39.08 | 39.28 |
| Short circuit current lsc(A) | 10.78 | 10 .83 | 10.88 | 10 .93 |
Nominal test conditions for IV parameters are standard test conditions (irradiance 10.0 Wm7, AM 15, cell temperature 25'°C) All measurements are guaranteed at laminate leads. NOCT measures wind speed at 800 W/m², 20C ambient temperature, and 1 m/s. Specifications are subject to change without notice.
JS Solar reserves the right of final interpretation and revision of this data sheet.
