JS182MHC108-415W
- Maximum power output: 415W
- Positive power tolerance: 0~+5W
- Maximum efficiency: 21.2%
High power up to show
- Large-area cells based on 182mm silicon wafers and half-cut cell technology
- Up to 21.2% module eciency with high density interconnect technology
- Multi-busbar technology for better light trapping eect, lower series resistance and improved current collection
High customer value
- Lower guaranteed rst year and annual degradation
- Designed for compatibility with existing mainstream system components
- Higher return on investment
Good PID resistance
- Minimized micro-cracks with innovative non-destructive cutting technology
- Ensured PID resistance through cell process and module material control

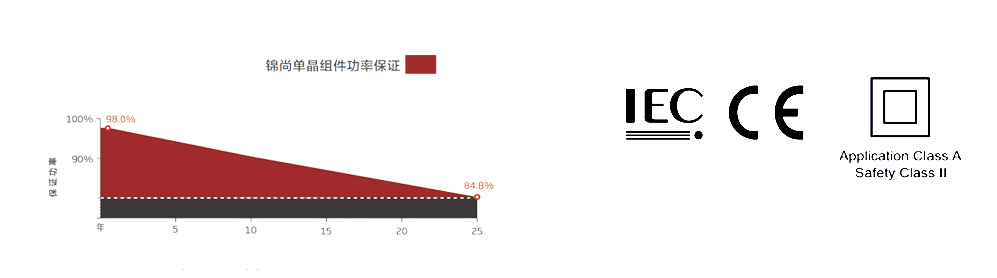

25-year warranty to reduce attenuation rate
free local delivery
25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature
design attributes
| Parameter | Value |
|---|---|

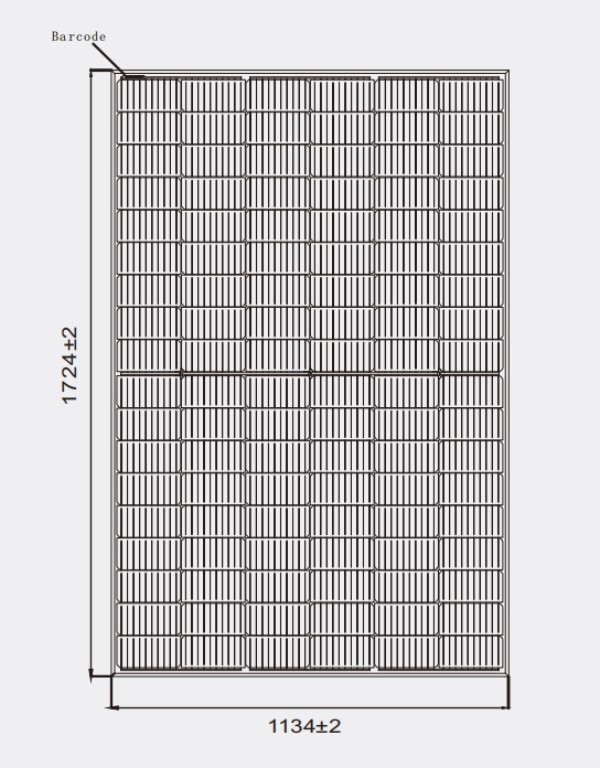

| Module Dimensions | 1724x1134x30mm |
| Weight | 21.5kg |
| Glass | 3.2 mm, High Transmission, AR Coated Heat Strengthened Glass |
| Junction Box | IP≥68 |
| Backsheet | White |
| Frame | 35 mm Anodized Aluminium Alloy |
| Cables | Photovoltaic Technology Cable 4.0mm2, Portrait: N 280mm/P 280mm Length can be customized |
| Sealant material | EVA |
| Solar battery | monocrystalline |
| Cell localization | 108 cells |

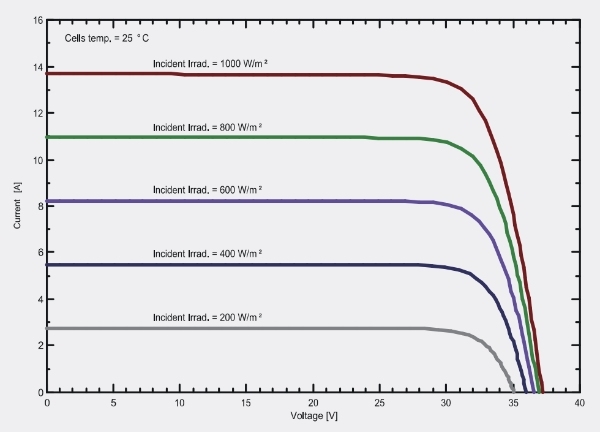

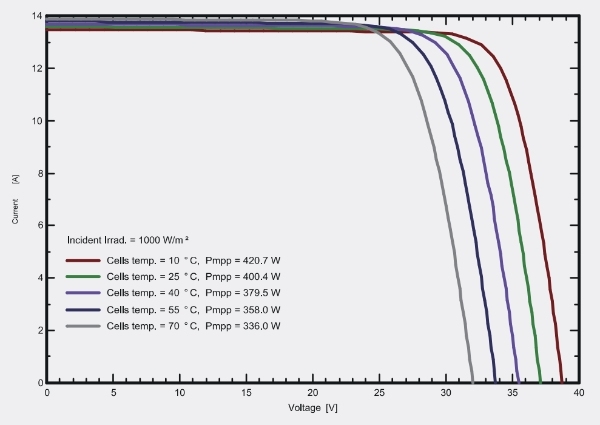

IV curve
Electrical performance
Electrical Performance@STC
| Maximum power Pmax Wp | 390 | 395 | 400 | 405 | 410 | 415 |
|---|---|---|---|---|---|---|
| Power Tolerance - pmax (W) | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 |
| Maximum supply voltage Vmpp(V) | 30.61 | 30.72 | 30.85 | 30.97 | 31.08 | 31.15 |
| maximum. Supply current lmpp(A) | 12.74 | 12.86 | 12.97 | 13.08 | 13.19 | 13.32 |
| Open circuit voltage Voc(V) | 36.64 | 36.84 | 37.04 | 37.24 | 37.44 | 37.64 |
| Short circuit current lsc(A) | 13.51 | 13.57 | 13.63 | 13.69 | 13.75 | 13.81 |
| Module efficiency (%) | 20.0% | 20.2% | 20.5% | 20.7% | 20.97% | 21.2% |
Electrical performance parameters
Electrical Performance@NOCT
| Maximum power Pmax Wp | 288 | 292 | 296 | 300 | 304 | 308 |
|---|---|---|---|---|---|---|
| Maximum supply voltage Vmpp(V) | 28.5 | 28.6 | 28.7 | 28.8 | 28.9 | 29.01 |
| maximum. Supply current lmpp(A) | 10.11 | 10.21 | 10.31 | 10.4 | 10.52 | 10.62 |
| Open circuit voltage Voc(V) | 34.3 | 34.4 | 34.5 | 34.6 | 34.7 | 34.8 |
| Short circuit current lsc(A) | 10.59 | 10.62 | 10.71 | 10.8 | 10.89 | 10.97 |
| Module efficiency (%) | 20.0% | 20.2% | 20.5% | 20.7% | 20.97% | 21.2% |
Nominal test conditions for IV parameters are standard test conditions (irradiance 10.0 Wm7, AM 15, cell temperature 25'°C) All measurements are guaranteed at laminate leads. NOCT measures wind speed at 800 W/m², 20C ambient temperature, and 1 m/s. Specifications are subject to change without notice.
JS Solar reserves the right of final interpretation and revision of this data sheet.
