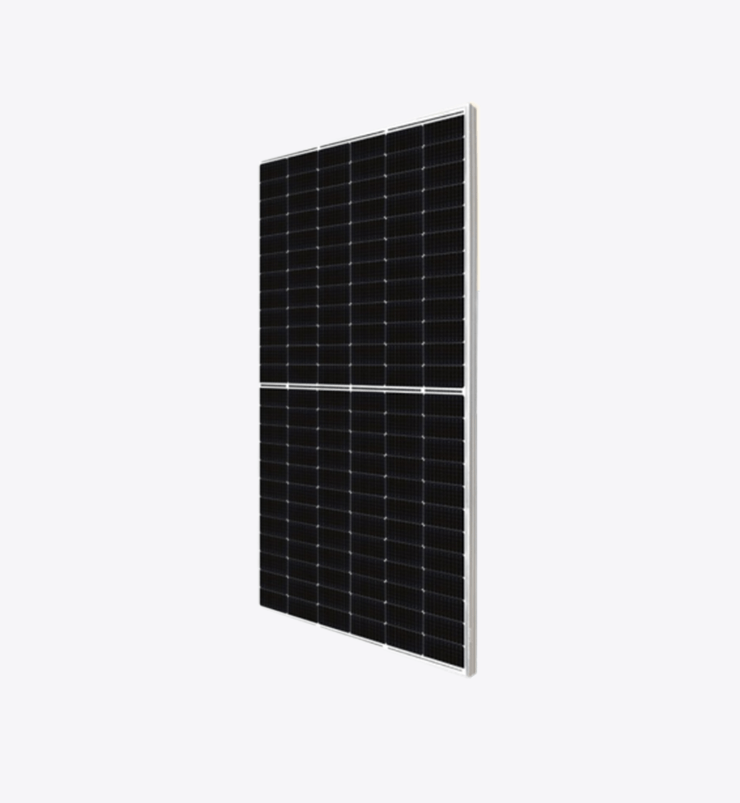

JS182M144HC-550W
- High conversion efficiency
- Flexible installation
- Good PID resistance
- 25-year warranty to reduce decay rate
free local delivery
25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature

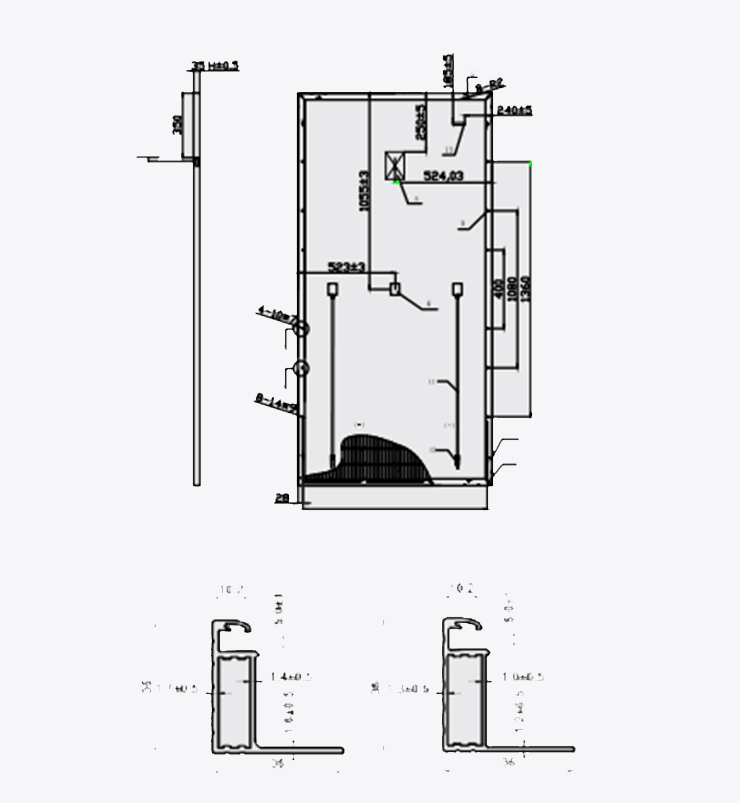

design attributes
| Parameter | Value |
|---|---|
| Solar battery | single crystal |
| cell localization | 144 cells |
| module size | 2279×1134×35mm |
| weight | 26.5 kg |
| Glass | 3.2 mm, high transmission, AR-coated heat-strengthened glass |
| Sealant material | EVA |
| relatively | White |
| frame | 35mm anodized aluminum |
| J-Box | ip68 rated |
| cable | Photovoltaic technology cable 4.0mm2, 250mm(+)/350(-) or custom length |

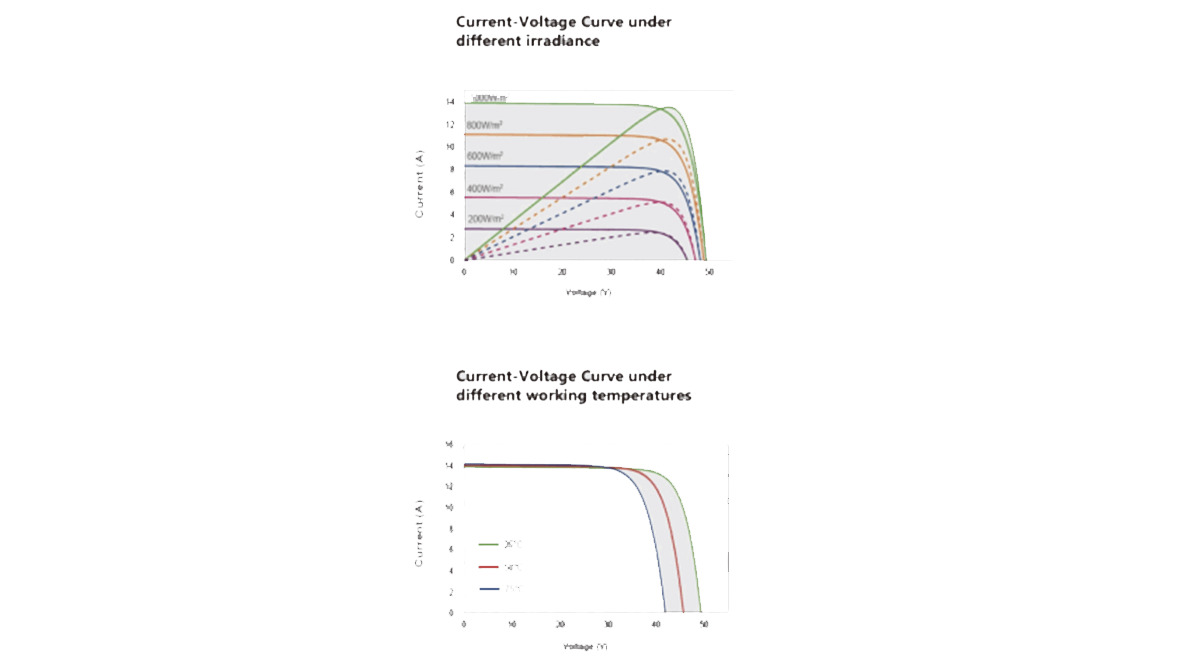

IV curve
Electrical performance
Electrical performance @ STC
| Maximum power Pmax Wp | 525 | 530 | 535 | 540 | 545 | 550 |
|---|---|---|---|---|---|---|
| Power tolerance - pmax (W) | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 |
| Maximum supply voltage Vmpp(V) | 41.0 | 41.2 | 41.4 | 41.6 | 41.8 | 42 |
| maximum. Supply current lmpp(A) | 12.80 | 12.86 | 12.92 | 12.98 | 13.04 | 13.10 |
| Open circuit voltage Voc(V) | 49.2 | 49.33 | 49.4 | 49.5 | 49.7 | 49.8 |
| Short circuit current lsc(A) | 13.5 | 13.6 | 13.71 | 13.83 | 13.91 | 13.98 |
| Module efficiency (%) | 30% | 50% | 70% | 20.89% | 21.08% | 21.28% |
Electrical performance parameters
Electrical Performance@NOCT
| Maximum power Pmax Wp | 395 | 399 | 402 | 406 | 409 | 412 |
|---|---|---|---|---|---|---|
| Maximum supply voltage Vmpp(V) | 38.22 | 38.27 | 38.33 | 38.39 | 38.45 | 38.51 |
| maximum. Supply current lmpp(A) | 10.35 | 10.42 | 10.50 | 10.59 | 10.64 | 10.70 |
| Open circuit voltage Voc(V) | 45.9 | 46.03 | 46.09 | 46.18 | 46.35 | 46.51 |
| Short circuit current lsc(A) | 10.91 | 10.99 | 11.08 | 11.16 | 11.24 | 11.32 |
Nominal test conditions for IV parameters are standard test conditions (irradiance 10.0 Wm7, AM 15, cell temperature 25'°C) All measurements are guaranteed at laminate leads. NOCT measures wind speed at 800 W/m², 20C ambient temperature, and 1 m/s. Specifications are subject to change without notice.
JS Solar reserves the right of final interpretation and revision of this data sheet.
