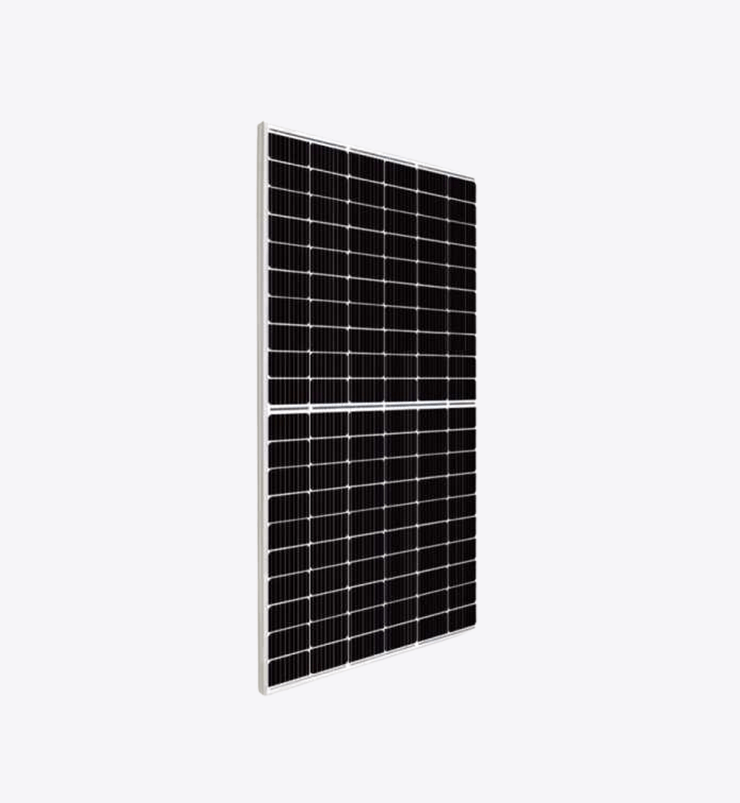

JS166MHC120-375W
- 120 half cells (166mm-9BB) connected in series
- 0~3% positive power tolerance improves system performance
- Industry-leading module efficiency: the highest efficiency is 20.3%
- Tested up to 5400Pa maximum load resistance
- Proven resistance to PID effects

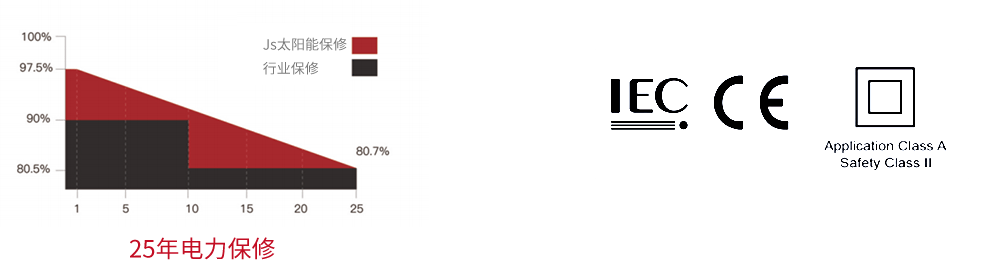

- Progressive power warranty guarantees 80.7% of rated power for 25 years
- Manufactured globally with world-class quality standards
- Strict salt spray and ammonia corrosion test by TUV SuD.
free local delivery
25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature

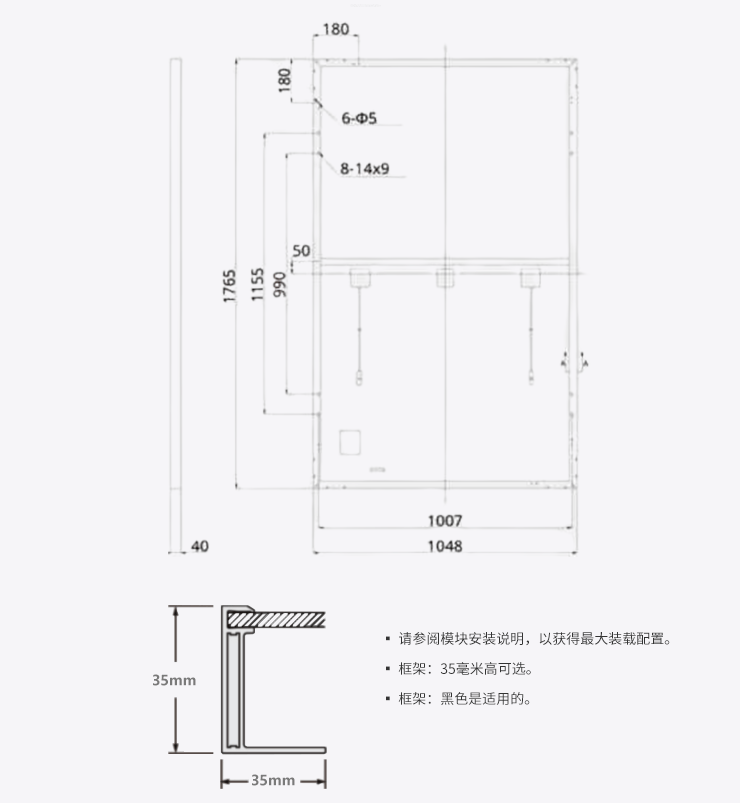

design attributes
| Parameter | Value |
|---|---|
| dimension | 1765x1048x40mm |
| weighing | 21kg |
| Glass | 3.2mm low iron tempered glass |
| Junction Box | IP≥67 |
| Output | MC4 compatible |
| Connector | EVA |
| Package | 26 pcs/ pallet, 676 pcs/ container (HQ) |

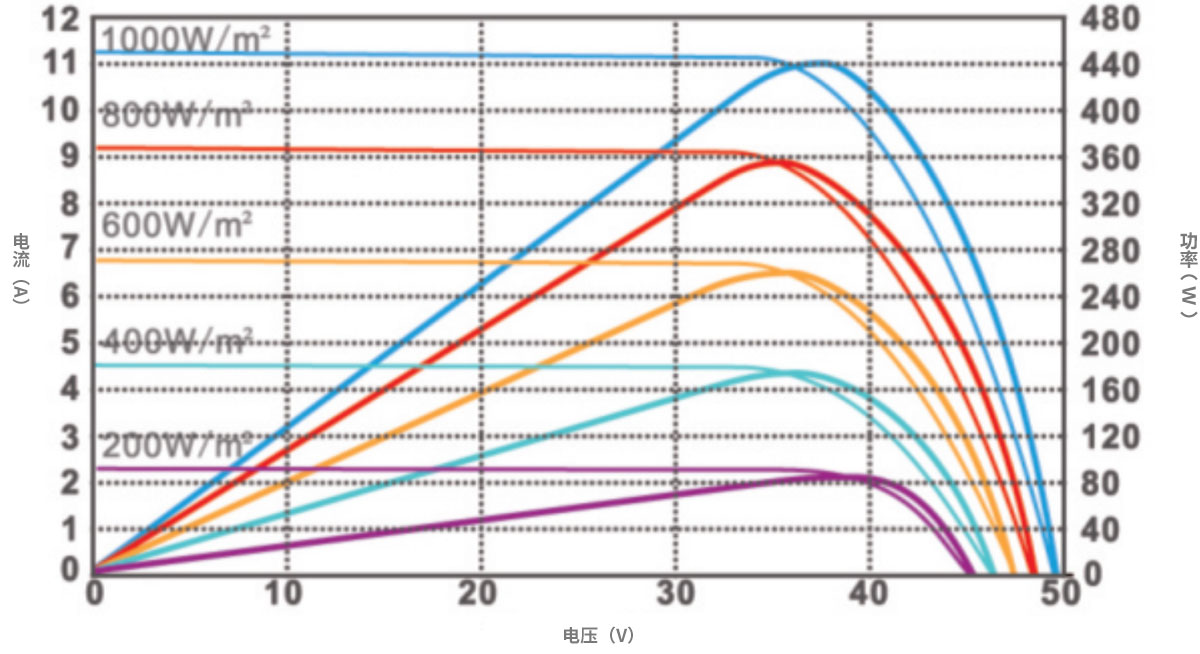

IV curve
Electrical performance
| Electrical performance @ STC | JS350M | JS355M | JS360M | JS365M | JS370M | JS375M |
|---|---|---|---|---|---|---|
| Maximum power Pmax Wp | 350 | 335 | 360 | 365 | 370 | 375 |
| Maximum supply voltage Vmpp(V) | 33.3 | 33.5 | 33.7 | 33.9 | 34.1 | 34.3 |
| maximum. Supply current lmpp(A) | 10.52 | 10.61 | 10.69 | 10.78 | 10.86 | 10.94 |
| Open circuit voltage Voc(V) | 40.2 | 40.2 | 40.4 | 40.6 | 40.8 | 41.0 |
| Short circuit current lsc(A) | 11.28 | 11.33 | 11.40 | 11.47 | 11.54 | 11.61 |
| Module efficiency (%) | 18.9% | 19.2% | 19.5% | 19.7% | 20.0% | 20.3% |
Electrical performance parameters
| LSC temperature coefficient α (%/C) | +0.05 | maximum. Series Fuses | 20A | |
|---|---|---|---|---|
| VOC temperature coefficient β(%/°C) | -0.36 | maximum. system voltage | International Electrotechnical Commission | 1000V / 1500V |
| Pmax temperature coefficient v (%/°C) | -0.28 | Nominal Operating Cell Temperature (NOCT) | 45℃±3℃ | |
| Reduced efficiency at 200 W/m2, 25°C | <5% |
Nominal test conditions for IV parameters are standard test conditions (irradiance 10.0 Wm7, AM 15, cell temperature 25'°C) All measurements are guaranteed at laminate leads. NOCT measures wind speed at 800 W/m², 20C ambient temperature, and 1 m/s. Specifications are subject to change without notice.
JS Solar reserves the right of final interpretation and revision of this data sheet.
