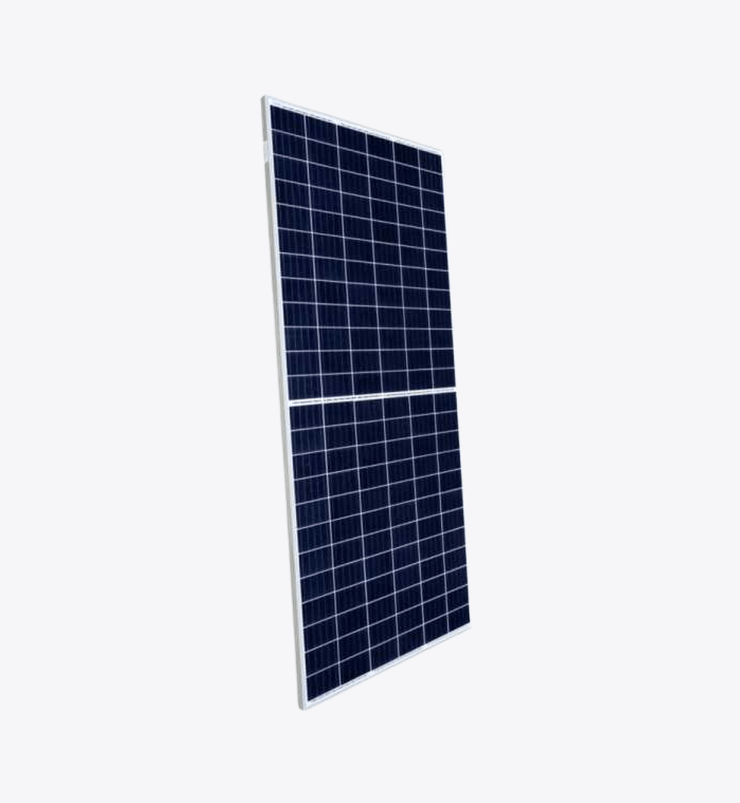

JS157PHC144-360W
- 144 half cells (157mm-5BB) connected in series
- 0~3% positive power tolerance improves system performance
- Industry-leading module efficiency: the highest efficiency is 17.9%
- Tested up to 5400Pa maximum load resistance
- Proven resistance to PID effects

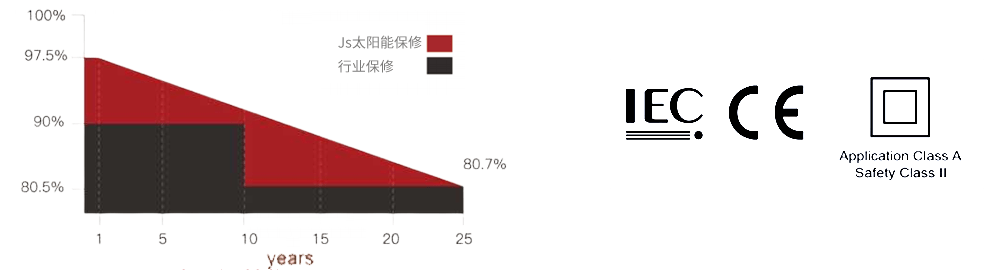

- Progressive power warranty guarantees 80.7% of rated power for 25 years
- Manufactured globally with world-class quality standards
- Strict salt spray and ammonia corrosion test by TUV SuD.
free local delivery
25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature

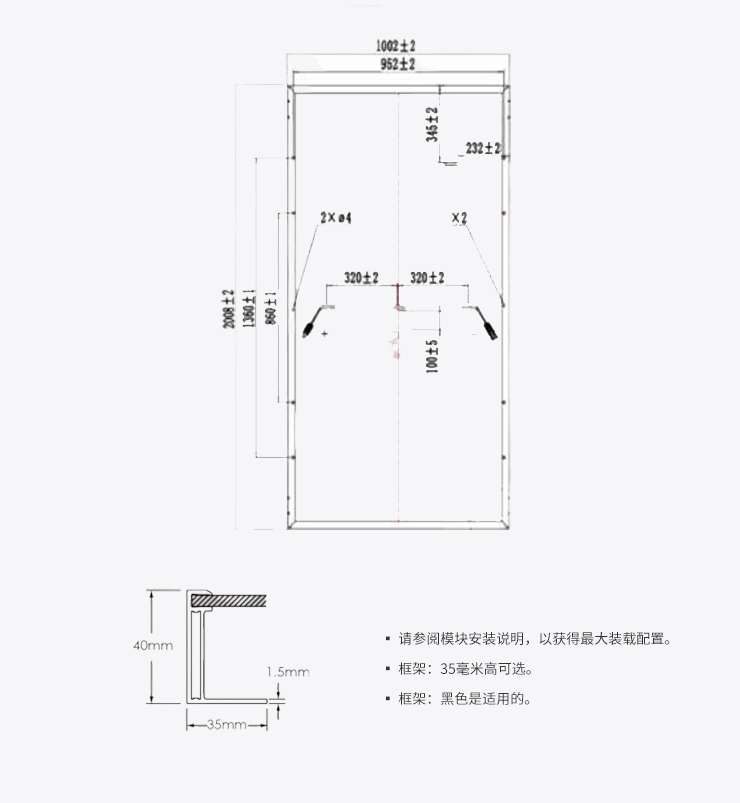

design attributes
| Parameter | Value |
|---|---|
| dimension | 2008x1002x40mm |
| weighing | 22.5kg±5% |
| Glass | 3.2mm low iron tempered glass |
| Junction Box | IP≥67 |
| Output | Portrait: N350mm/P350mm |
| Connector | MC4 compatible |
| Package | 26 pcs/ pallet, 616 pcs/ container (HQ) |

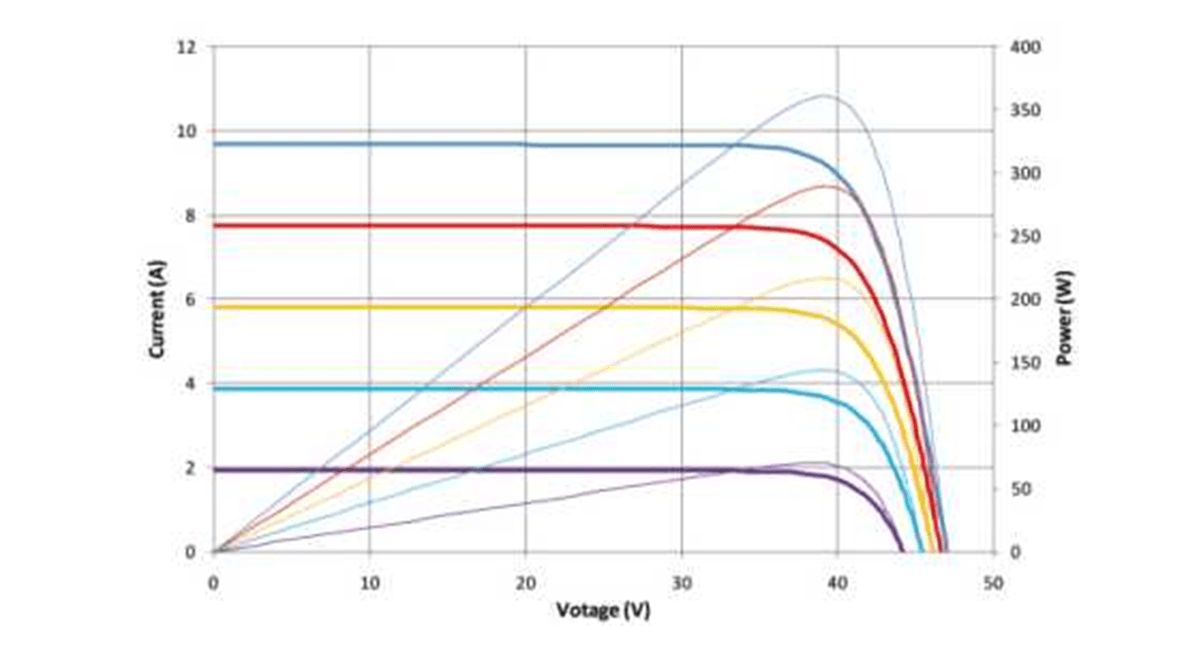

IV curve
Electrical performance
| Electrical performance@STC | JS340P | JS345P | JS350P | JS355P | JS360P |
|---|---|---|---|---|---|
| Maximum power Pmax Wp | 340 | 345 | 350 | 355 | 360 |
| Maximum supply voltage Vmpp(V) | 38.60 | 38.85 | 39.2 | 39.4 | 39.6 |
| maximum. Supply current lmpp(A) | 8.81 | 8.88 | 8.93 | 9.02 | 9.10 |
| Open circuit voltage Voc(V) | 46.2 | 46.4 | 46.6 | 46.8 | 47.0 |
| Short circuit current lsc(A) | 9.41 | 9.50 | 9.52 | 9.60 | 9.68 |
| Module efficiency (%) | 16.9% | 17.1% | 17.4% | 17.6% | 17.9% |
Electrical performance parameters
| LSC temperature coefficient α (%/C) | +0.05 | maximum. Series Fuses | 15A | |
|---|---|---|---|---|
| VOC temperature coefficient β(%/°C) | -0.36 | maximum. system voltage | International Electrotechnical Commission | 1000V / 1500V |
| Pmax temperature coefficient v (%/°C) | -0.28 | Nominal Operating Cell Temperature (NOCT) | 45℃±3℃ | |
| Reduced efficiency at 200 W/m2, 25°C | <5% | Operating temperature | -40℃~+85℃ |
Nominal test conditions for IV parameters are standard test conditions (irradiance 10.0 Wm7, AM 15, cell temperature 25'°C) All measurements are guaranteed at laminate leads. NOCT measures wind speed at 800 W/m², 20C ambient temperature, and 1 m/s. Specifications are subject to change without notice.
JS Solar reserves the right of final interpretation and revision of this data sheet.
