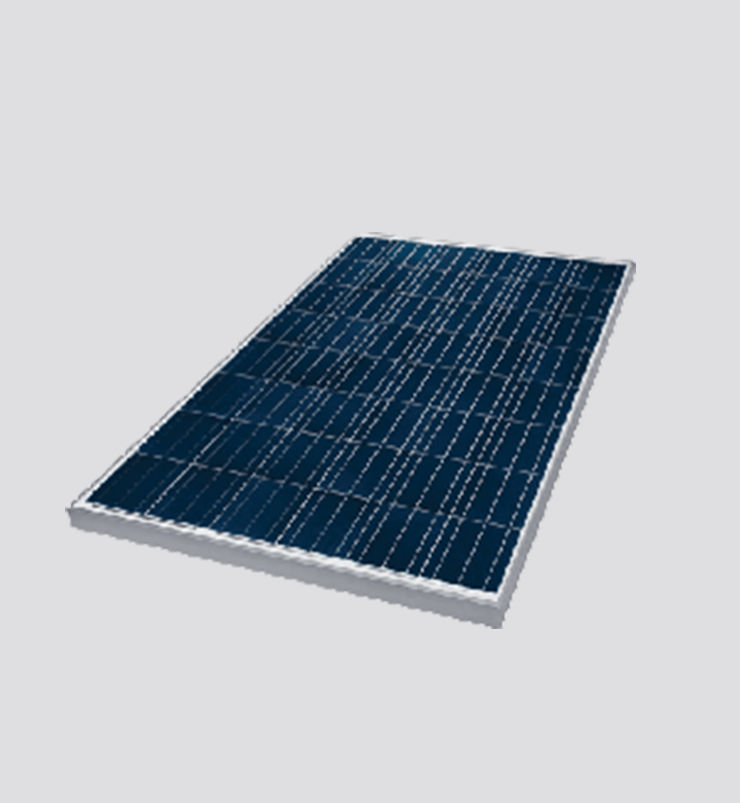

JS157P48-215W

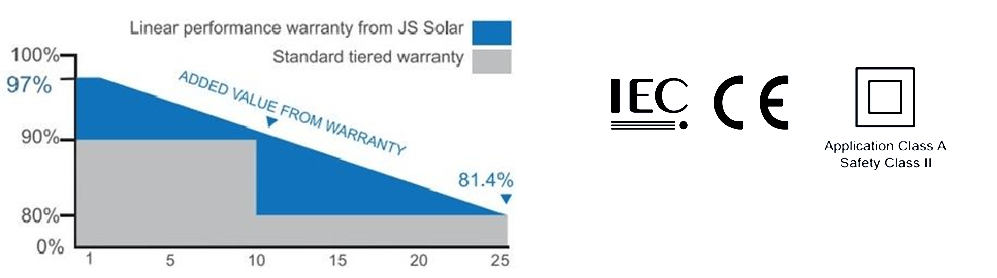

- 25-year linear performance guarantee
- 10-year warranty on materials and workmanship
- Product liability insurance
- Errors and omissions insurance
free local delivery
25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature

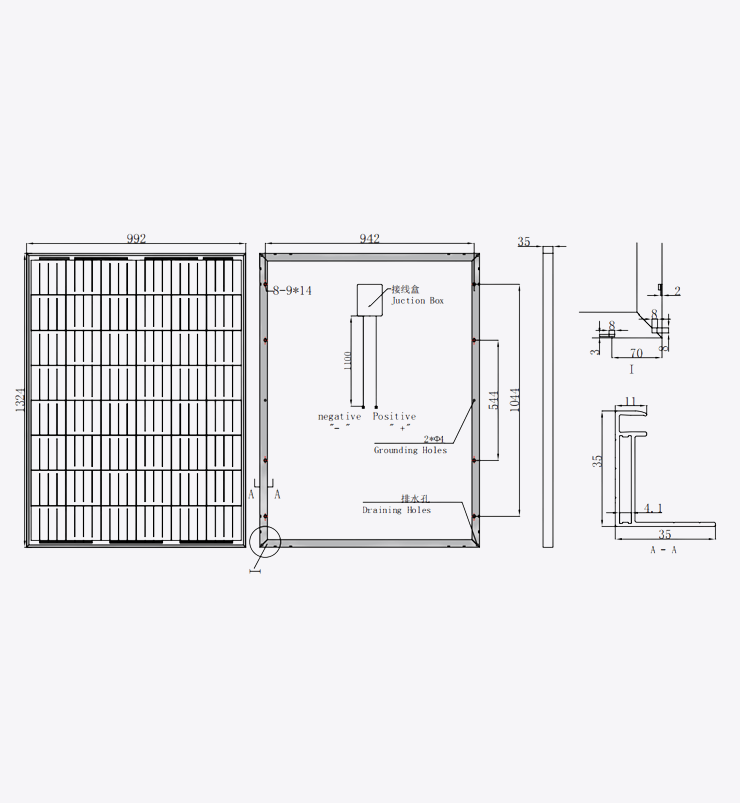

design attributes
| Parameter | Value |
|---|---|
| dimension | 1324x992x35mm |
| weighing | 15.4kg |
| Glass | 3.2mm tempered glass/AR coated glass |
| cable length | 900mm |
| Connector | MC.A or compatible connector |
IV curve
Electrical performance
| Electrical performance@STC | js | 200P | 205P | 210P | 215P | 220P | 225P |
|---|---|---|---|---|---|---|---|
| Maximum power Pmax Wp | W | 200 | 205 | 210 | 215 | 220 | 225 |
| Maximum supply voltage Vmpp(V) | V | 24.3 | 24.8 | 25.3 | 25.7 | 26.2 | 26.6 |
| maximum. Supply current lmpp(A) | A | 8.22 | 8.27 | 8.3 | 8.36 | 8.4 | 8.45 |
| Open circuit voltage Voc(V) | V | 30.2 | 30.7 | 31.1 | 31.15 | 31.23 | 31.32 |
| Short circuit current lsc(A) | A | 8.69 | 8.78 | 8.88 | 9.04 | 9.23 | 9.42 |
| Module efficiency (%) | % | 0-3 | 0-3 | 0~3 | 0~3 | 0~3 | 0~3 |
| Module efficiency (%) | IEC EN:1000V/UL:600V/UL:1000V | ||||||
| Module efficiency (%) | % | 15.23% | 15.61% | 16.00% | 16.40% | 16.75% | 17.13% |
Electrical performance parameters
| Electrical performance@STC | js | 200P | 205P | 210P | 215P | 220P | 225P |
|---|---|---|---|---|---|---|---|
| Maximum power Pmax Wp | W | 148 | 151 | 154 | 157 | 160 | 164 |
| Maximum supply voltage Vmpp(V) | V | 22.5 | 22.7 | 22.9 | 23.1 | 23.3 | 23.6 |
| maximum. Supply current lmpp(A) | A | 6.59 | 6.65 | 6.72 | 6.79 | 6.86 | 6.94 |
| Open circuit voltage Voc(V) | V | 28.4 | 28.5 | 28.6 | 28.7 | 28.8 | 28.9 |
| Short circuit current lsc(A) | A | 7.02 | 7.15 | 7.34 | 7.49 | 7.63 | 7.78 |
Nominal test conditions for IV parameters are standard test conditions (irradiance 10.0 Wm7, AM 15, cell temperature 25'°C) All measurements are guaranteed at laminate leads. NOCT measures wind speed at 800 W/m², 20C ambient temperature, and 1 m/s. Specifications are subject to change without notice.
JS Solar reserves the right of final interpretation and revision of this data sheet.
