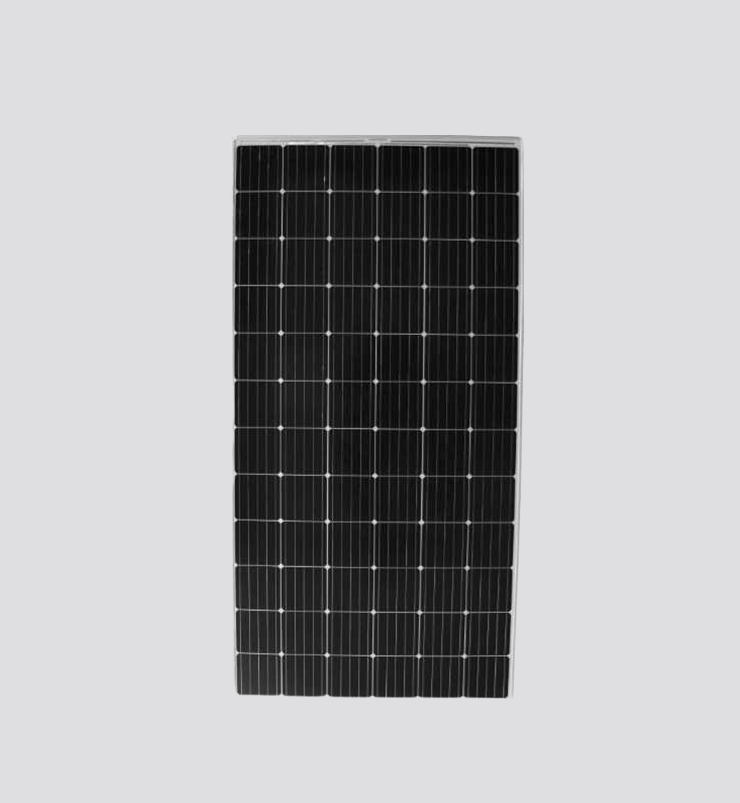

JS156M72-375W
- Industry-leading module efficiency: the highest efficiency is 19.3%
- 0~3% positive power tolerance improves system performance
- High-tech aluminum alloy frame, certified for heavy snow (5400Pa) and wind load (4000Pa)
- IP67 junction box, long-term weather resistance
- Resistant to salt spray and ammonia, suitable for seaside and farm environments
- According to the test of standard IEC61215 and IEC61730, our photovoltaic modules have proved to be resistant to PID (Strongly Induced Degradation), which means your investment is safe.
free local delivery

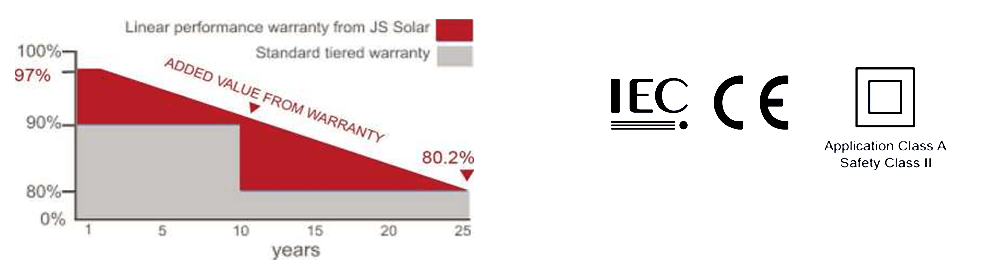

25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature
design attributes
| Parameter | Value |
|---|---|
| dimension | 1956x992x35mm |
| weighing | 23.5kg±5% |
| Glass | 3.2mm low iron tempered glass |
| Junction Box | IP67 with 3 bypass diodes |
| Output | ① 4.0mm2, 1200mm |
| Connector | MC4 compatible |
| Package | 30 pcs/ pallet,72o pcs/ container (HQ) |

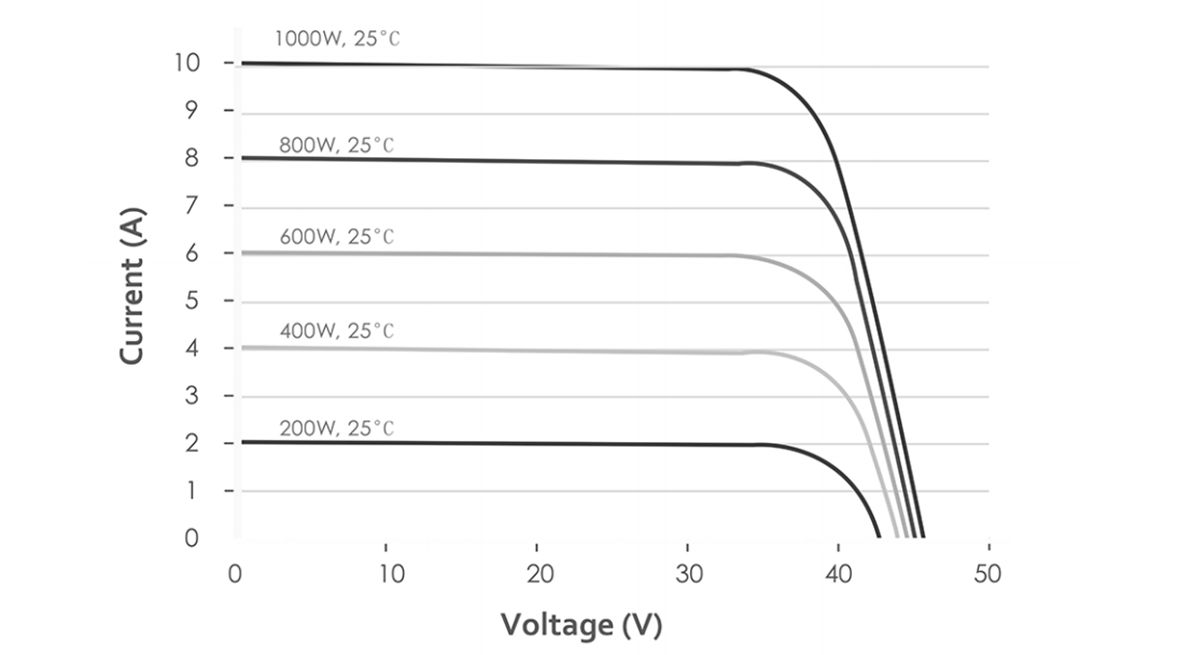

IV curve
Electrical performance
| Electrical performance@STC | JS360M | JS365M | JS370M | JS375M |
|---|---|---|---|---|
| Maximum power Pmax Wp | 360 | 365 | 370 | 375 |
| Maximum supply voltage Vmpp(V) | 39.43 | 39.63 | 39.83 | 40.02 |
| Maximum supply current lmpp(A) | 9.13 | 9.21 | 9.29 | 9.37 |
| Open circuit voltage Voc(V) | 48.52 | 48.82 | 49.12 | 49.42 |
| Short circuit current lsc(A) | 9.67 | 9.73 | 9.79 | 9.85 |
| Module efficiency (%) | 18.46% | 18.72% | 18.97% | 19.23% |
Electrical performance parameters
| LSC temperature coefficient α (%/C) | +0.06 | maximum. Series Fuses | 15A | |
|---|---|---|---|---|
| VOC temperature coefficient β(%/°C) | -0.32 | maximum. system voltage | International Electrotechnical Commission | 1000/1500V |
| Pmax temperature coefficient v (%/°C) | -0.42 | Nominal Operating Cell Temperature (NOCT) | 45℃±2℃ |
Nominal test conditions for IV parameters are standard test conditions (irradiance 10.0 Wm7, AM 15, cell temperature 25'°C) All measurements are guaranteed at laminate leads. NOCT measures wind speed at 800 W/m², 20C ambient temperature, and 1 m/s. Specifications are subject to change without notice.
JS Solar reserves the right of final interpretation and revision of this data sheet.
