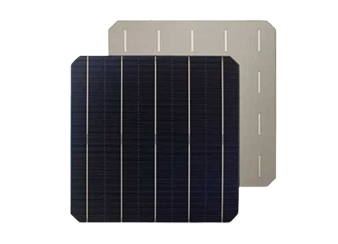

JS156M5
- High conversion efficiencies resulting in superior power output performance
- Outsttanding power output even in low light or high temperature conditions
- Optirnized design for ease of soldering and lamination
- Long-term stability, reliability and performance
- Low breakage rate
- Uniform Color
free local delivery

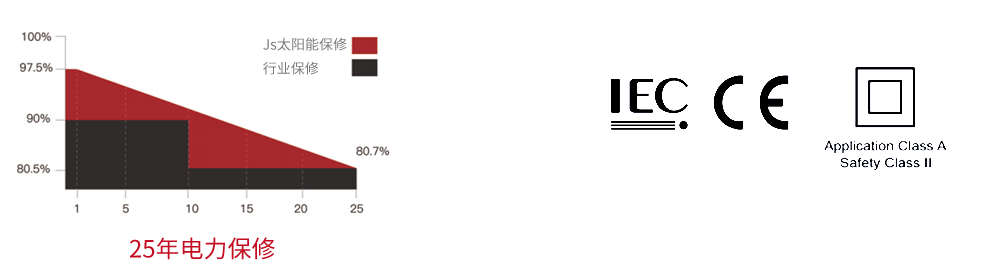

25-year power supply warranty
Lifetime Customer Support
Certifications and Standards
feature
design attributes
| Parameter | Value |
|---|---|
| Dimension | 156.75mm x 156.75mm ± 0.25mm |
| Diagonal | 210mm ± 0.5mm (round chamfer) |
| Thickness (Si) | 160μm ±10μm |
| Front | Anisotropically texturized surface and dark silicon nitrideanti-reflection coatings |
| Front | 0.7mm silver busbar |
| back | Local aluminum back-surface field |

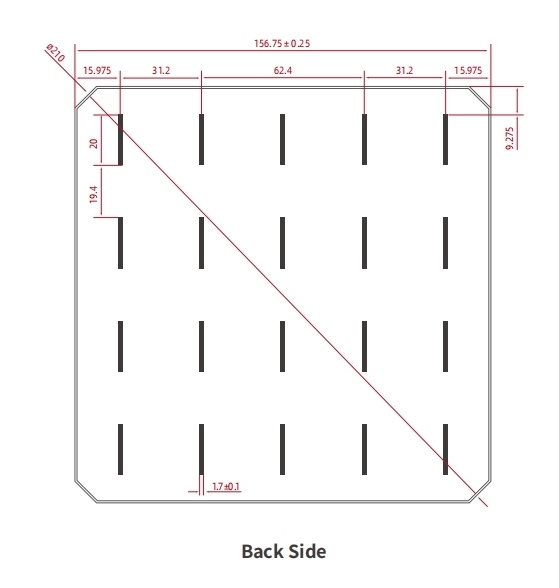

| back | 1.7mm (silver / aluminum) discontinuous soldering pads |
IV curve
Electrical performance
| Efficiency Code | 225 | 224 | 223 | 222 | 221 | 220 | 219 | 218 | 217 | 216 |
|---|---|---|---|---|---|---|---|---|---|---|
| Efficiency Eff(%) | 22.5 | 22.4 | 22.3 | 22.2 | 22.10 | 22.00 | 21.90 | 21.80 | 21.70 | 21.60 |
| Power Ppm(W) | 5.50 | 5.47 | 5.45 | 5.43 | 5.40 | 5.38 | 5.35 | 5.33 | 5.30 | 5.28 |
| Maximum supply current lpm(A) | 9.48 | 9.45 | 9.43 | 9.41 | 9.40 | 9.39 | 9.37 | 9.35 | 9.33 | 9.31 |
| Short circuit current Isc(A) | 9.91 | 9.90 | 9.89 | 9.88 | 9.87 | 9.86 | 9.85 | 9.84 | 9.82 | 9.81 |
| Maximum supply voltage Vpm(V) | 0.580 | 0.579 | 0.578 | 0.577 | 0.575 | 0.573 | 0.571 | 0.570 | 0.568 | 0.567 |
| Open circuit voltage Voc(V) | 0.675 | 0.674 | 0.673 | 0.672 | 0.671 | 0.670 | 0.668 | 0.667 | 0.666 | 0.665 |
Electrical performance parameters
| LSC temperature coefficient α (%/K) | +0.04 |
|---|---|
| VOC temperature coefficient β(%/K°) | -0.31 |
| Pmax temperature coefficient v (%/K°) | -0.41 |
Nominal test conditions for IV parameters are standard test conditions (irradiance 10.0 Wm7, AM 1.5, cell temperature 25°C) All measurements are guaranteed at laminate leads. NOCT measures wind speed at 1000W/㎡, 20C ambient temperature, and 1 m/s. Specifications are subject to change without notice.
JS Solar reserves the right of final interpretation and revision of this data sheet.
